Panduit Corp - Panduit DPF14-250FIB-C Disconnect, Blackue, Premium Nylon, 14-16 AWG, 0.25" Tab
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983203888
Buy American - Y
Catalog Number - DPF14-250FIB-C
Color - Blue
Conductor Size - 14 AWG
Packaging
1 ea
EAN
00074983203888
Part #
112500
Catalog #
DPF14-250FIB-C
Commercial reference
DPF14-250FIB-C
12-Digit UPC:
074983203888
Buy American:
Y
Catalog Number:
DPF14-250FIB-C
Color:
Blue
Conductor Size:
14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DPF14-250FIB-C FEM DISCONN
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
0.22 Inch
Material:
Brass
Overall Length:
0.84 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.35 in
Wire Size:
16-14 AWG
SoneparProductId:
SKU_US_31938005

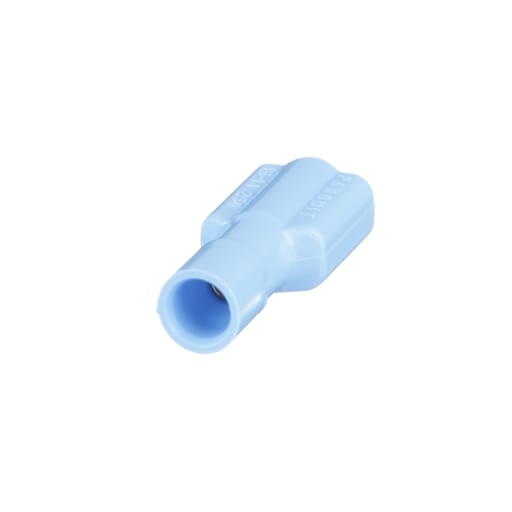

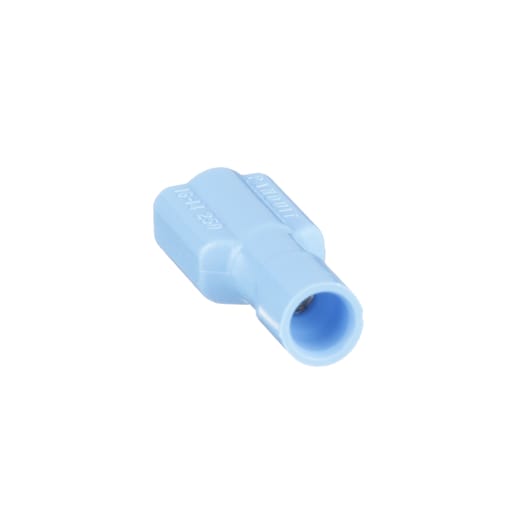

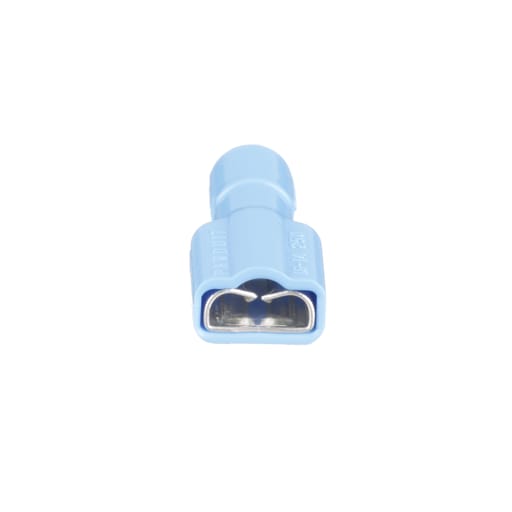

The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in blue premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
