Panduit Corp - Panduit DR10-250-D Disconnect, Bare, 10-12 AWG, 0.25" Tab, PK500
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827565
Buy American - Y
Catalog Number - DR10-250-D
Color - Brass
Conductor Size - 10 AWG
Packaging
1 ea
EAN
00074983827565
Part #
132103
Catalog #
DR10-250-D
Commercial reference
DR10-250-D
12-Digit UPC:
074983827565
Buy American:
Y
Catalog Number:
DR10-250-D
Color:
Brass
Conductor Size:
10 AWG
Country of Origin:
Mexico
Depths:
0.57 Inch
ERP_productname:
PAND DR10-250-D DISCONNECT,FEM,RA,NON-INS,12-10AWG, PK500
Family Brand Name:
Panduit Corp.
Finish:
Rust-Proof Plating, Vinyl Coated
Heights:
0.3 Inch
Material:
Brass
Overall Length:
0.61 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.3 in
Wire Size:
12-10 AWG
SoneparProductId:
SKU_US_75135375

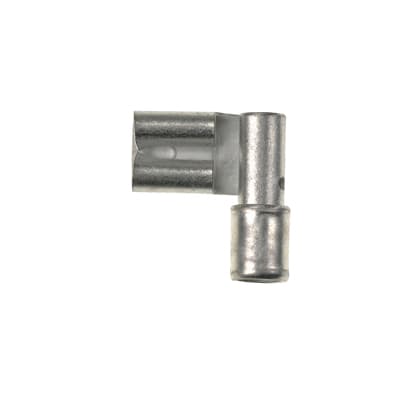

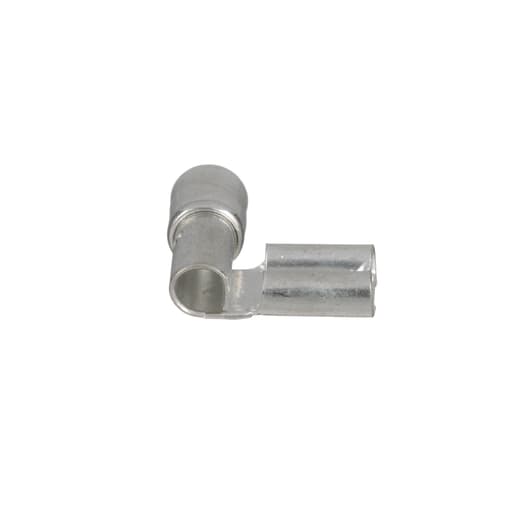

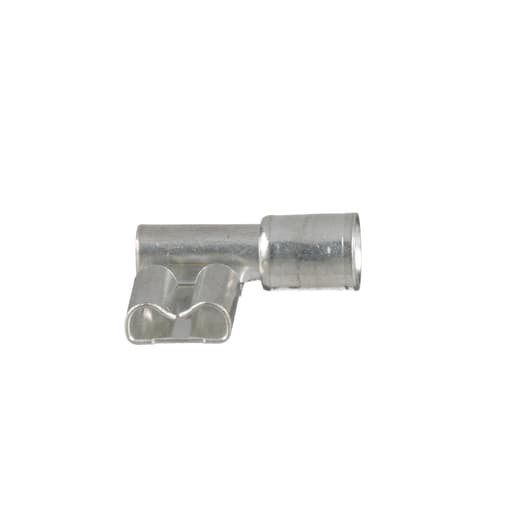

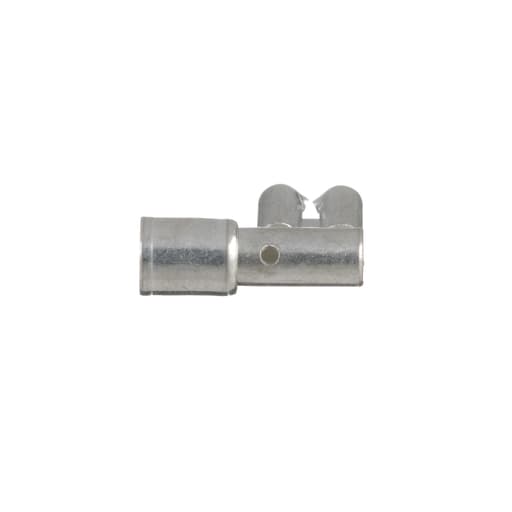

The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 0.61" (15.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 500. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
