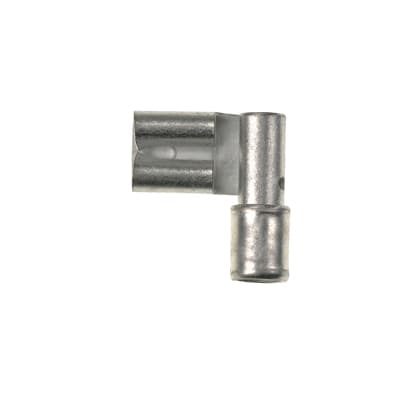

Panduit Corp - Panduit DR14-250-M Disconnect, 90?, Bare, 14-16 AWG, 0.25" Tab, PK1000
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827596
Buy American - Y
Catalog Number - DR14-250-M
Conductor Size - 14 AWG
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983827596
Part #
305435
Catalog #
DR14-250-M
Commercial reference
DR14-250-M
12-Digit UPC:
074983827596
Buy American:
Y
Catalog Number:
DR14-250-M
Conductor Size:
14 AWG
Country of Origin:
Mexico
Depths:
0.55 Inch
ERP_productname:
PAND DR14-250-M PAN-TERM? DR14-250-M DISCONNECT, 90?, BA
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.61 Inch
Material:
Brass
Overall Length:
0.57 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.3 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_31746104
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
