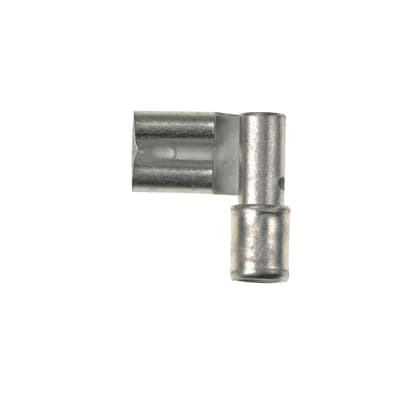

Panduit Corp - Panduit DR18-250-M Loose Piece Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983827657
Buy American - Y
Catalog Number - DR18-250-M
Conductor Size - 18 AWG
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983827657
Part #
203050
Catalog #
DR18-250-M
Commercial reference
DR18-250-M
12-Digit UPC:
074983827657
Buy American:
Y
Catalog Number:
DR18-250-M
Conductor Size:
18 AWG
Country of Origin:
Mexico
Depths:
0.54 Inch
ERP_productname:
PAND DR18-250-M FEMALE DISCONNECT, RIGHT ANGLE, NON-INSU
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.54 Inch
Material:
Brass
Overall Length:
0.57 in
Sub Brand:
Pan-Term®
Tc Connection:
Standard
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.3 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_31746093
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.57" (14.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
