Panduit Corp - Panduit DV10-250-D Vinyl Barrel Insulated Female Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983821051
Buy American - Y
Catalog Number - DV10-250-D
Color - Yellow
Conductor Size - 10 AWG
Packaging
1 ea
EAN
00074983821051
Part #
112913
Catalog #
DV10250D
Commercial reference
DV10250D
12-Digit UPC:
074983821051
Buy American:
Y
Catalog Number:
DV10-250-D
Color:
Yellow
Conductor Size:
10 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DV10250D DISCONNECT BULK-PK
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.13 Inch
Material:
Brass
Overall Length:
1.03 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.3 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_25667913

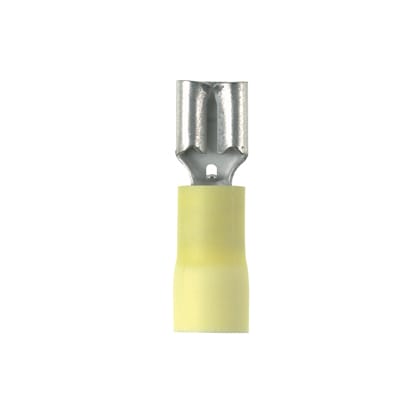

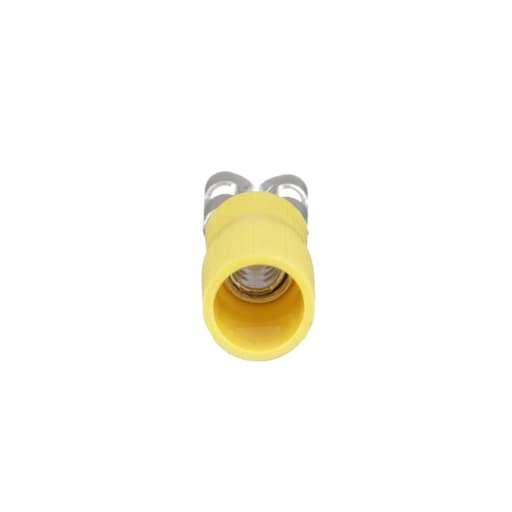

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 1.03" (26.2 mm) long and 0.3" (7.6 mm) wide. The disconnect has a funnel entry barrel configuration and a sleaved barrel. It comes in boxes of 500. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
