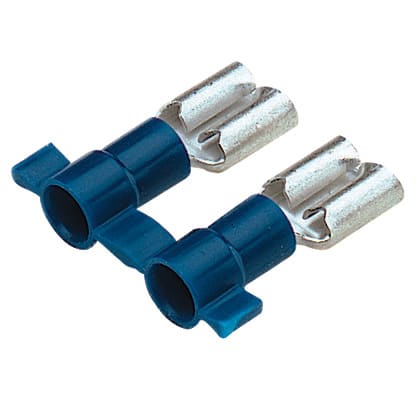

Panduit Corp - Panduit DV14-188B-3K Disconnects on a Reel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983686117
Buy American - Y
Catalog Number - DV14-188B-3K
Color - Blue
Conductor Size - 14 AWG
Packaging
1 ea
EAN
00074983686117
Part #
132123
Catalog #
DV14-188B-3K
Commercial reference
DV14-188B-3K
12-Digit UPC:
074983686117
Buy American:
Y
Catalog Number:
DV14-188B-3K
Color:
Blue
Conductor Size:
14 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DV14-188B-3K DISCONNECT,FEM,VINYL,16-14AWG,REEL3 000
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.09 Inch
Material:
Brass
Overall Length:
0.77 in
Sub Brand:
Reel Smart™
Tc Connection:
Funnel Entry
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.23 in
Wire Size:
14 AWG
SoneparProductId:
SKU_US_31645819
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.77" (19.6 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
