Panduit Corp - Panduit DV18-250B-CY Female Disconnect, Vinyl Barrel Insulated, 22-18AWG, .250" x .032" Tab
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983685615
Buy American - Y
Catalog Number - DV18-250B-CY
Color - Red
Conductor Size - 22-18 AWG
Packaging
100 ea
EAN
00074983685615
Part #
145350
Catalog #
DV18-250B-CY
Commercial reference
DV18-250B-CY
12-Digit UPC:
074983685615
Buy American:
Y
Catalog Number:
DV18-250B-CY
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DV18-250B-CY VYL FEM DISCONNCT REPLACES DV18-250B-C WHICH IS OBSOLETE
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
0.12 Inch
Material:
Brass
Overall Length:
0.81 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
0.29 in
Wire Size:
22-18 AWG
SoneparProductId:
SKU_US_25696341

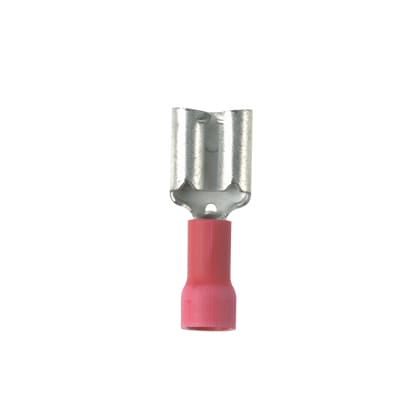

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 - Prop 65: No
