Panduit Corp - Panduit DV18-250B-MY Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK1000
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983409204
Buy American - Y
Catalog Number - DV18-250B-MY
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983409204
Part #
137830
Catalog #
DV18-250B-MY
Commercial reference
DV18-250B-MY
12-Digit UPC:
074983409204
Buy American:
Y
Catalog Number:
DV18-250B-MY
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DV18-250B-MY DISCONNECT
Family Brand Name:
Panduit Corp.
Finish:
Tinned
Heights:
0.12 Inch
Material:
Brass
Overall Length:
0.81 in
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Disconnect
Voltage:
600 Volt
Widths:
0.29 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_30368026

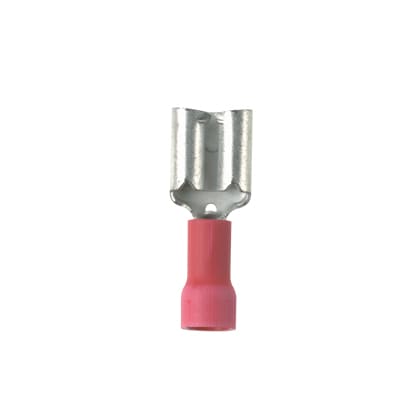

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
