Panduit Corp - Panduit DV18-250MB-CY 22 to 18 AWG Red Vinyl Barrel Insulated Funnel Entry Male Disconnect
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983685622
Buy American - Y
Catalog Number - DV18-250MB-CY
Color - Red
Conductor Size - 22-18 AWG
Packaging
1 ea
EAN
00074983685622
Part #
145358
Catalog #
DV18-250MB-CY
Commercial reference
DV18-250MB-CY
12-Digit UPC:
074983685622
Buy American:
Y
Catalog Number:
DV18-250MB-CY
Color:
Red
Conductor Size:
22-18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND DV18-250MB-CY MALE DISCONNECT VINYL INSULATED 22-18AWG
Family Brand Name:
Panduit Corp.
Finish:
Nickel
Material:
Copper
Overall Length:
0.98 in
Sub Brand:
Pan-Term®
Tc Connection:
funnel Entry
Type:
Loose-Piece
Voltage:
600 Volt
Widths:
0.25 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_25700797

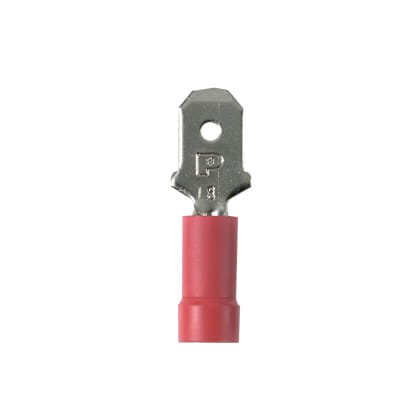

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100. Standards and Certifications: Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
