Panduit Corp - Panduit F1X1.5LG6 Narrow Slotted Wiring Duct, PVC, 1" x 1.5" x 6ft, Light Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983375073
Applications - For Indoor use
Buy American - Y
Catalog Number - F1X1.5LG6
Color - Light Gray
Packaging
6 ft
EAN
00074983375073
Part #
124724
Catalog #
F1X1.5LG6
Commercial reference
F1X1.5LG6
12-Digit UPC:
074983375073
Applications:
For Indoor use
Buy American:
Y
Catalog Number:
F1X1.5LG6
Color:
Light Gray
Country of Origin:
USA
Depths:
1-1/2 Inch
ERP_productname:
PAND F1X1.5LG6 SLOTTED DUCT,PVC,1X1.5X6',LGRAY
Family Brand Name:
Panduit Corp.
Heights:
1.62 Inch
Length:
6 Foot
Material:
PVC
Mounting Type:
Standard Mounting Hole
Overall Length:
6 ft
Size:
32.0 x 41.1 mm
Sub Brand:
Panduct
Tc Connection:
Standard Mounting Holes
Type:
Type F
Widths:
1 in
SoneparProductId:
SKU_US_25769687

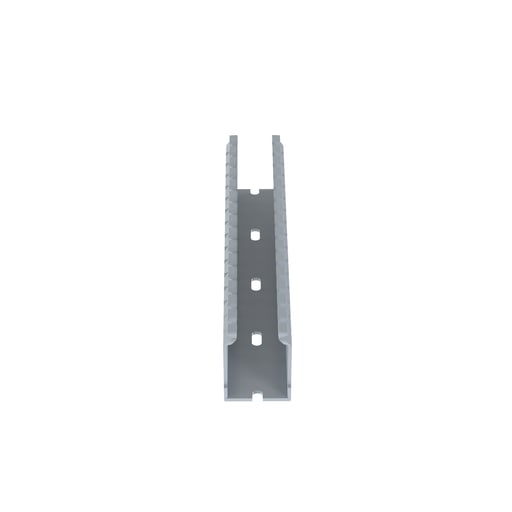

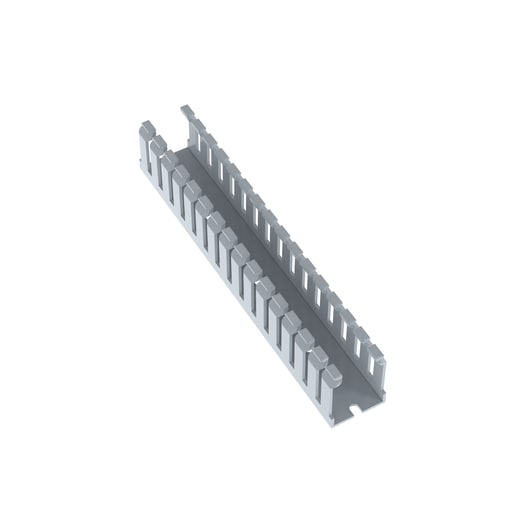

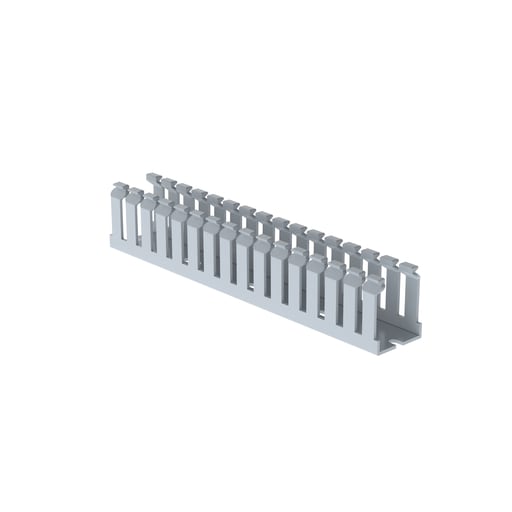

The F1X1.5LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. Lead-free PVC. 1.62" x 1.25" (41.1 mm x 31.8 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray. 6 per package. Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
