Panduit Corp - Panduit F3X5WH6 Narrow Slotted Wiring Duct, PVC, 3" x 5" x 6ft, White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983375844
Applications - Indoor
Buy American - Y
Catalog Number - F3X5WH6
Color - White
Packaging
1 ea
EAN
00074983375844
Part #
202377
Catalog #
F3X5WH6
Commercial reference
F3X5WH6
12-Digit UPC:
074983375844
Applications:
Indoor
Buy American:
Y
Catalog Number:
F3X5WH6
Color:
White
Country of Origin:
USA
ERP_productname:
PAND F3X5WH6 NARROW SLOTTED DUCT, PVC, 3 X 5 X 6'
Family Brand Name:
Panduit Corp.
Heights:
5.1 Inch
Length:
6 Foot
Material:
PVC
Mounting Type:
Mounting Holes
Overall Length:
6 ft
Size:
82.6 x 129.5 mm
Sub Brand:
Panduct®
Tc Connection:
Standard Mounting Holes
Type:
Base Wiring Duct
Widths:
3.25 in
SoneparProductId:
SKU_US_25618094

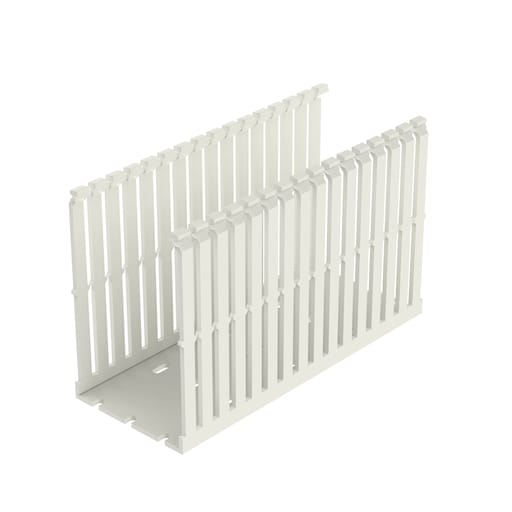

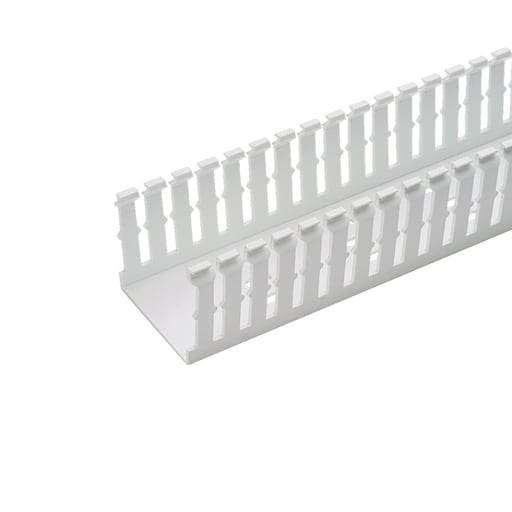

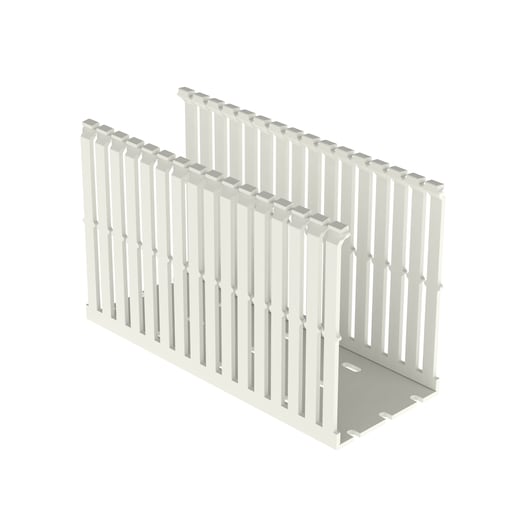

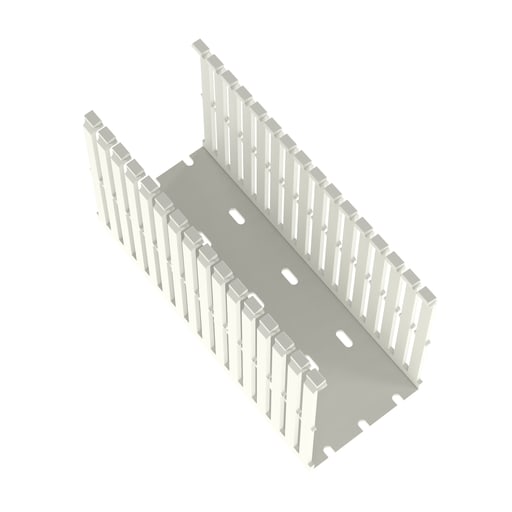

The F3X5WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. Lead-free PVC. 5.1" x 3.25" (129.5 mm x 82.6 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 per package. Standards and Certifications: Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
