Panduit Corp - Panduit FSCS2/9SOCA9AG Fusion Splice SC-APC Simplex 9m OS1/2 Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056574038
Applications - Used to Line Panel Edges and Knockouts Where the Chafing of Wires is a Concern
Buy American - Y
Catalog Number - FSCS2/9SOCA9AG
Color - Green
Packaging
1 ea
EAN
00613056574038
Part #
212750
Catalog #
FSCS2/9SOCA9AG
Commercial reference
FSCS2/9SOCA9AG
12-Digit UPC:
613056574038
Applications:
Used to Line Panel Edges and Knockouts Where the Chafing of Wires is a Concern
Buy American:
Y
Catalog Number:
FSCS2/9SOCA9AG
Color:
Green
Country of Origin:
Japan
Depths:
mm
ERP_productname:
PAND FSCS2/9SOCA9AG FIBER SC-APC SPLICE-ON CONNECTOR FOR SINGLEMODE
Family Brand Name:
Panduit Corp.
Type:
90.
Widths:
60 mm
SoneparProductId:
SKU_US_296141519

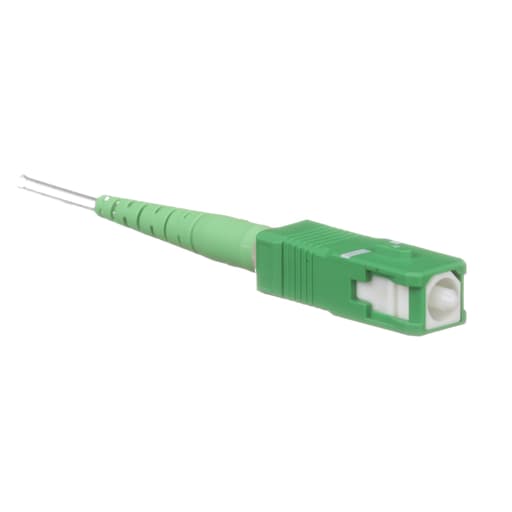

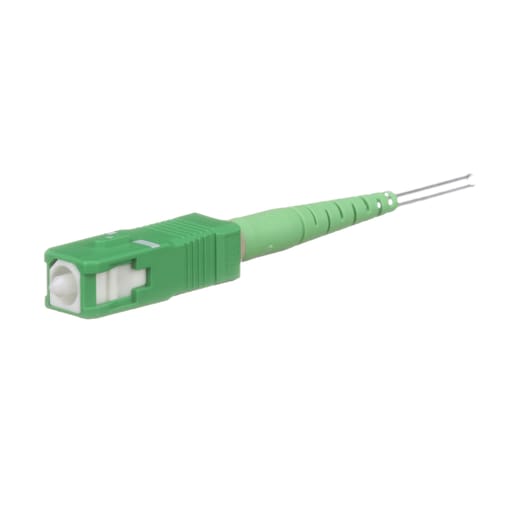

The Fusion Splice SC-APC Fiber Optic Connector is a singlemode 9/125?m OS1/OS2 simplex fiber connector, intended for 900?m tight-buffered or 250?m loose-tube fiber installation. Field termination can be done in about two minutes on several common splice machine brands. The connector consists of a ferrule assembly with a bare fiber stub, a front housing, a rear housing with integral boot, splice protection sleeve, and outer housing shroud. Standards and Certifications: Standards Met: RoHS compliant. Exceed TIA/EIA-568-B.3 requirements, TIA/EIA-604 FOCIS-3
