Panduit Corp - Panduit FSD84-12-C 6 AWG Single Wire Insulated Ferrule
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983762699
Buy American - Y
Catalog Number - FSD84-12-C
Color - Blue
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00074983762699
Part #
204918
Catalog #
FSD84-12-C
Commercial reference
FSD84-12-C
12-Digit UPC:
074983762699
Buy American:
Y
Catalog Number:
FSD84-12-C
Color:
Blue
Conductor Size:
6 AWG
Country of Origin:
Germany
ERP_productname:
PAND FSD84-12-C FERRULE POLYPROPYLENE INSULATED
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.91 in
Sub Brand:
Pan-Term®
Type:
Insulated
Wire Size:
6 AWG
SoneparProductId:
SKU_US_25296099

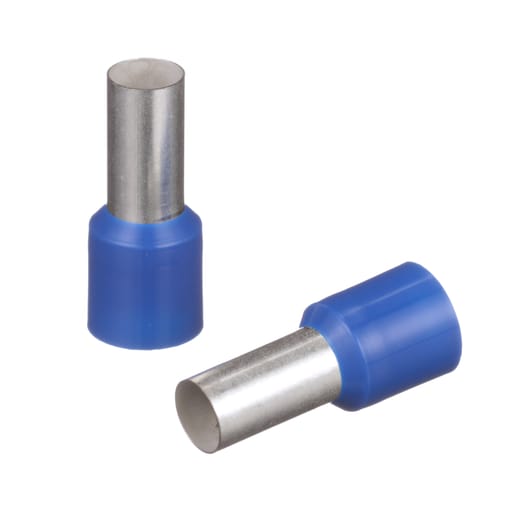

The single wire DIN end sleeve insulated ferrule in blue has a funnel entry for faster insertion and lower installation cost. It is intended for American Wire Gauge (AWG) #6 (16.0 mm.) wire ferrules and supports a maximum wire insulated diameter of 0.35 (8.8 mm). The insulated ferrule is 0.91 (23.0 mm) long and has a wire strip length of 0.625 (15.9 mm). It comes in standard packages of 100. Prop 65: No - Standards and Certifications: Standards Met: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
