Panduit Corp - Panduit GUBC500-6 Beam Grd Clamp, Copper, PK1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983009619

  • Applications - Utility/Ground Grid

  • Buy American - Y

  • Catalog Number - GUBC500-6

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00074983009619

Part #

148352

Catalog #

GUBC500-6

Commercial reference

GUBC500-6

12-Digit UPC:

074983009619

Applications:

Utility/Ground Grid

Buy American:

Y

Catalog Number:

GUBC500-6

Country of Origin:

Mexico

ERP_productname:

PAND GUBC500-6 UNIVERSAL BEAM CONNECTOR, #6 AWG - 500 K

Family Brand Name:

Panduit Corp.

Heights:

2-1/2 Inch

Length:

3.15 Inch

Material:

Copper

Overall Length:

3.15 in

Sub Brand:

StructuredGround™

Type:

Beam Grounding Clamp

Widths:

2.13 in

SoneparProductId:

SKU_US_30949709

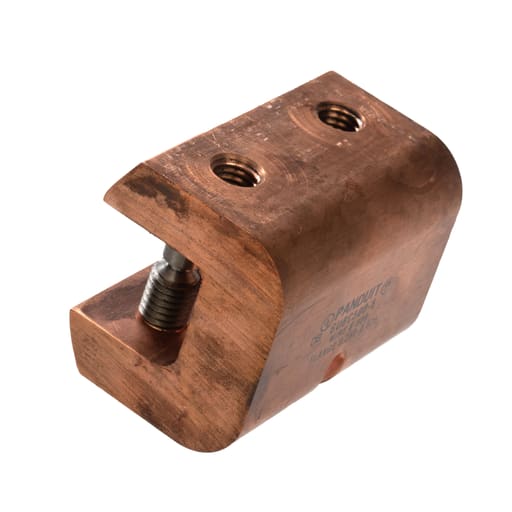

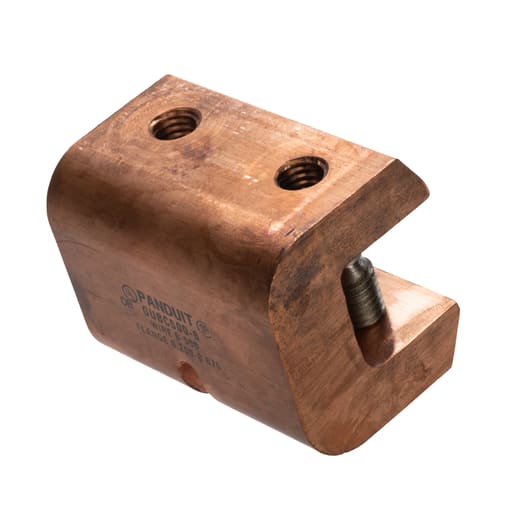

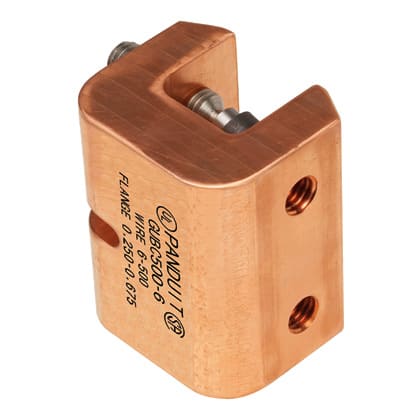

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Prop 65: No - Standards and Certifications: Standards Met: Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
