Panduit Corp - Panduit H1.5X2LG6 Slotted Hinged Duct,PVC,1.5"X2"X6',Light Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983138432

  • Applications - Hinged Cover Wide Slot Wiring Duct

  • Buy American - Y

  • Catalog Number - H1.5X2LG6

  • Color - Light Gray

Packaging

  • 6 ft

EAN

00074983138432

Part #

168762

Catalog #

H1.5X2LG6

Commercial reference

H1.5X2LG6

12-Digit UPC:

074983138432

Applications:

Hinged Cover Wide Slot Wiring Duct

Buy American:

Y

Catalog Number:

H1.5X2LG6

Color:

Light Gray

Country of Origin:

USA

ERP_productname:

PAND H1.5X2LG6 SLOT HINGE DUCT,PVC,1.5"X2"X6',LG, 6FT

Family Brand Name:

Panduit Corp.

Heights:

1.98 Inch

Length:

6 Foot

Material:

PVC

Mounting Type:

Mounting Holes

Overall Length:

6 ft

Size:

44.5 x 50.3 mm

Sub Brand:

Panduct®

Tc Connection:

Standard Mounting Holes

Type:

Base Wiring Duct

Widths:

1.75 in

SoneparProductId:

SKU_US_29301215

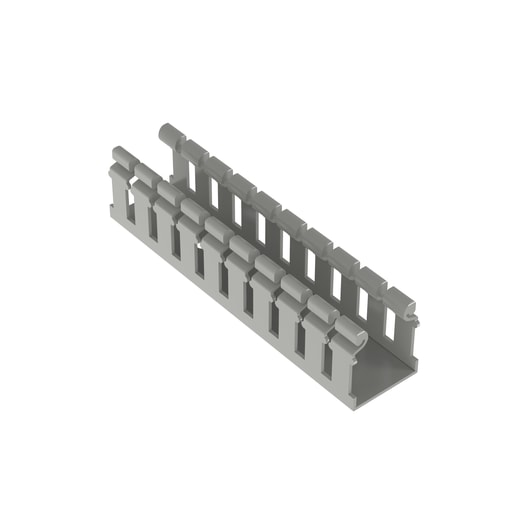

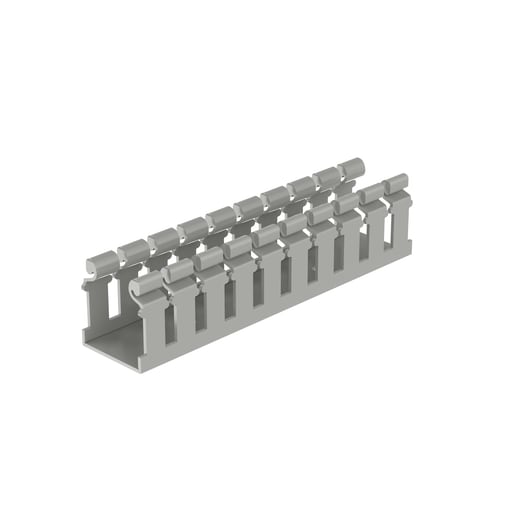

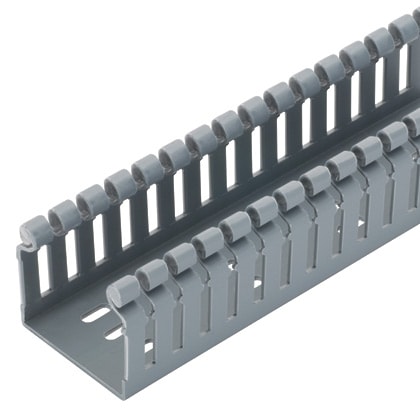

The H1.5X2LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. Lead-Free PVC. 1.98" x 1.75" (50.3mm x 44.5mm) and 6' (1.83m) long. Cover sold separately. Light Gray. 6 per package. Standards and Certifications: Standards Met: UL 94 V-0 Recognized; CSA Certified; CE Compliant; RoHS Compliant
