Panduit Corp - Panduit H3X4LG6 Slotted Hinged Duct,PVC,3"X4"X6',Light Gray

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983138517

  • Applications - Hinged Cover Wide Slot Wiring Duct

  • Buy American - Y

  • Catalog Number - H3X4LG6

  • Color - Light Gray

Packaging

  • 1 ea

EAN

00074983138517

Part #

298336

Catalog #

H3X4LG6

Commercial reference

H3X4LG6

12-Digit UPC:

074983138517

Applications:

Hinged Cover Wide Slot Wiring Duct

Buy American:

Y

Catalog Number:

H3X4LG6

Color:

Light Gray

Country of Origin:

USA

ERP_productname:

PAND H3X4LG6 PANDUCT? H3X4LG6 HINGED COVER WIDE SLOT

Family Brand Name:

Panduit Corp.

Heights:

4.1 Inch

Length:

6 Foot

Material:

PVC

Mounting Type:

Mounting Holes

Overall Length:

6 ft

Size:

82.6 x 104.1 mm

Sub Brand:

Panduct®

Tc Connection:

Standard Mounting Holes

Type:

Base Wiring Duct

Widths:

3.25 in

SoneparProductId:

SKU_US_31775192

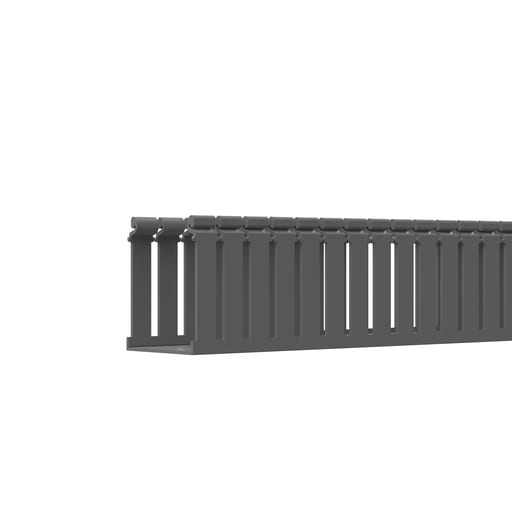

The H3X4LG6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover design with wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122.F (50.C). Mounting holes provided. PVC. 4.1" x 3.25" (104.1 mm x 82.5 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray. 6/package. Standards and Certifications: Standards Met: UL 94 V-0 Recognized; CSA Certified; CE Compliant; RoHS Compliant
