Panduit Corp - Panduit HTCT250-250-1 Compression Connectors - Taps
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983440849
Amperage - 2 Amp
Applications - Telecom/Data Center
Buy American - Y
Catalog Number - HTCT250-250-1
Packaging
1 ea
EAN
00074983440849
Part #
228474
Catalog #
HTCT250-250-1
Commercial reference
HTCT250-250-1
12-Digit UPC:
074983440849
Amperage:
2 Amp
Applications:
Telecom/Data Center
Buy American:
Y
Catalog Number:
HTCT250-250-1
Color:
Purple
Conductor Size:
2 AWG-250 kcmil
Country of Origin:
Mexico
ERP_productname:
PAND HTCT250-250-1 COPPER COMPRESSION HTAP, FOR CODE AND FL
Family Brand Name:
Panduit Corp.
Heights:
1.92 Inch
Length:
0.9 Inch
Overall Length:
0.9 in
Sub Brand:
StructuredGround™
Type:
Compression Tap
Voltage:
600 Volt
Widths:
0.89 in
SoneparProductId:
SKU_US_29677582

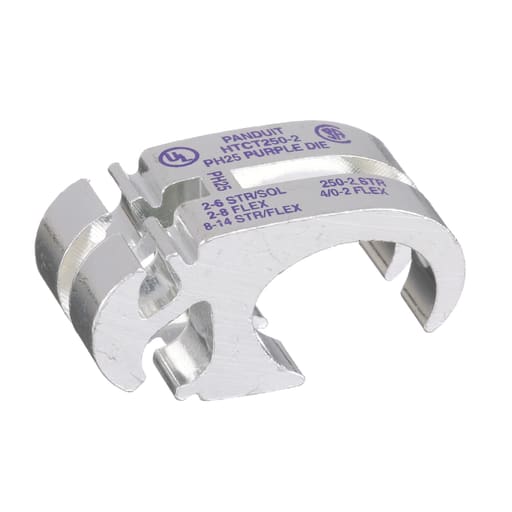

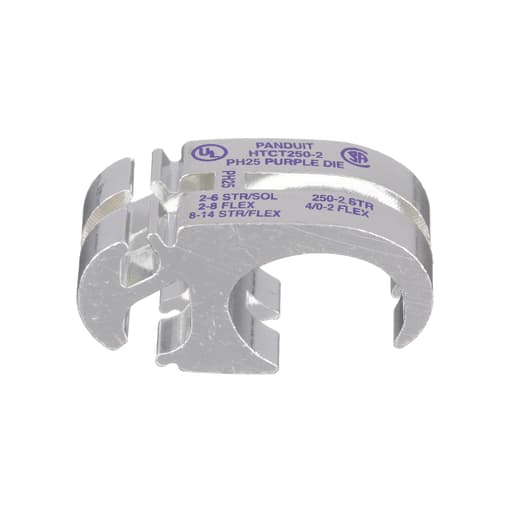

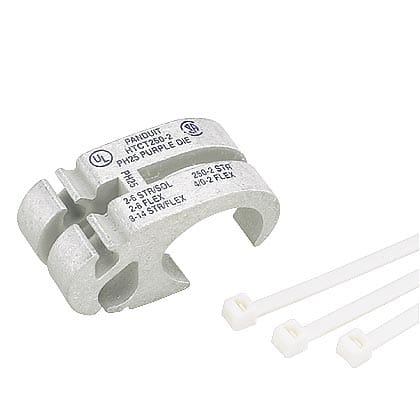

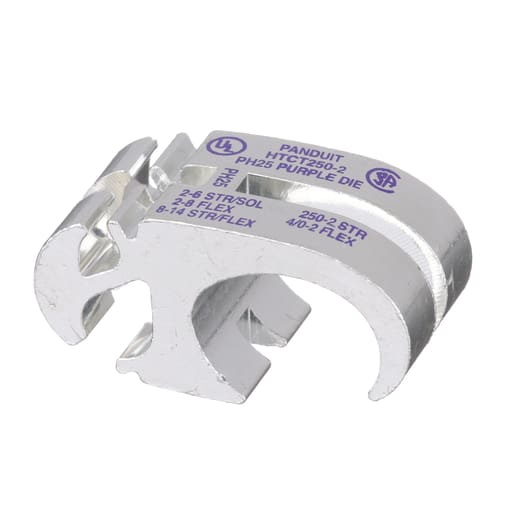

The HTCT250-250-1 Compression Connector Tap used to tap into continuous conductors as a splice or pig tailing. Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors Class G, H, I, and Diesel Locomotive to suit a variety of applications. The slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties. Meets cULus and CSA Certified for applications up to 600 V.
