Panduit Corp - Panduit IAEBH6 Industrial Cat 6 RJ45 UTP Bulkhead Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983816033
Applications - Unshielded
Buy American - Y
Catalog Number - IAEBH6
Color - Black
Packaging
1 ea
EAN
00074983816033
Part #
224017
Catalog #
IAEBH6
Commercial reference
IAEBH6
12-Digit UPC:
074983816033
Applications:
Unshielded
Buy American:
Y
Catalog Number:
IAEBH6
Color:
Black
Conductor Size:
26 AWG
Country of Origin:
USA
Depths:
42.4 mm
ERP_productname:
PAND IAEBH6 INDUSTRIAL ETHERNET CONNECTOR CAT 6 UTP
Family Brand Name:
Panduit Corp.
Heights:
5.34 Inch
Material:
Copper
Number of Positions:
8
Sub Brand:
IndustrialNet™
Type:
Industrial, RJ45, 1-Slot, Unshielded, 8-Wire
Widths:
1.49 in
SoneparProductId:
SKU_US_72977585

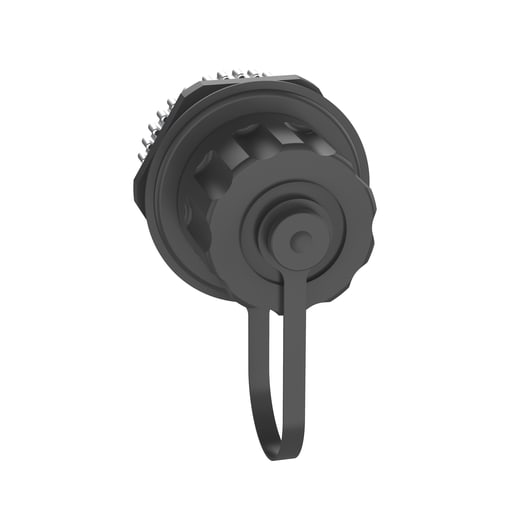

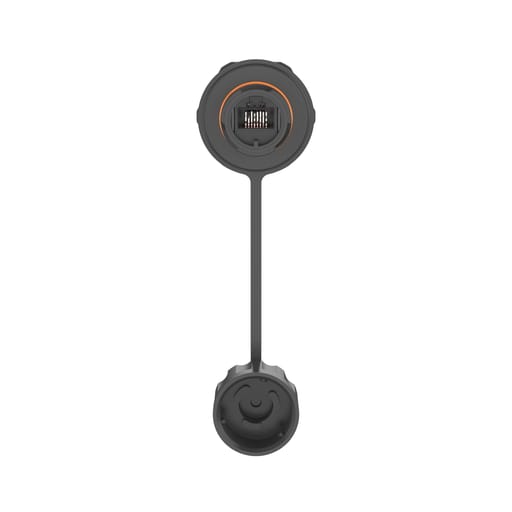

The IndustrialNet™ Cat 6 UTP bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The UTP bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool. Standards and Certifications: Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO11801 Class E standards at swept frequencies 1 to 250 MH, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Meets ANSI/TIA-1096-A, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X, RoHS compliant
