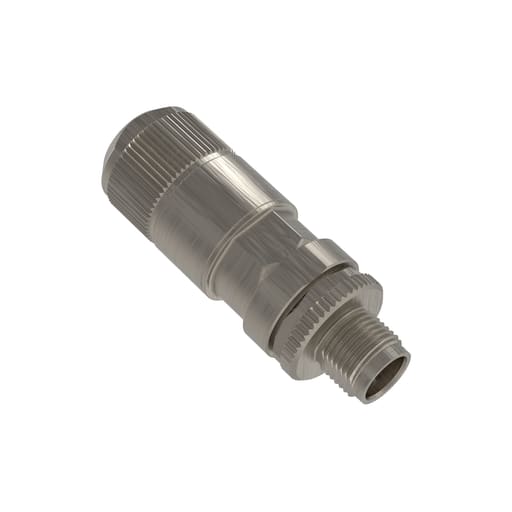

Panduit Corp - Panduit ISPS6A88MFA IndustrialNet™ M12 D-Code Field-Terminable Modular Plug

The M12 X-Code modular plug is field terminable for use with industrial grade, 26/7 - 22/7 AWG stranded, Cat 6A, UTP or shielded copper cable. This plug is constructed of a zinc cast housing with a 360. shield. The plug has an ingress protection rating of IP65/IP67 and offers an extended temperature range as required for more demanding applications. It is easily attachable without any special tools and is capable of termination to a 2-pair stranded or solid twisted-pair copper cable. Standards and Certifications: Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO11801 Class EA standards at swept frequencies 1 to 500 MHz, Shall meet ODVA Ethernet/IP^ , PROFINET and CC-Link performance requirements, Plug meets IEC 61076-2-109, IEC 60532-4, and IEC 60529 specifications, Compliant to UL 1863, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant.
