Panduit Corp - Panduit JBP1IW Single-Gang Power Rated 2-Piece Outlet Box
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983640713
Applications - Non-Locking Blade Plugs, 1-3/8 in Device Opening
Buy American - Y
Catalog Number - JBP1IW
Color - Off-White
Packaging
1 ea
EAN
00074983640713
Part #
124885
Catalog #
JBP1IW
Commercial reference
JBP1IW
12-Digit UPC:
074983640713
Applications:
Non-Locking Blade Plugs, 1-3/8 in Device Opening
Buy American:
Y
Catalog Number:
JBP1IW
Color:
Off-White
Country of Origin:
USA
Depths:
45 mm
ERP_productname:
PAND JBP1IW SINGLE GANG BOX 600V
Family Brand Name:
Panduit Corp.
Heights:
1-3/4 Inch
Length:
5.12 Inch
Material:
PVC
Mounting Type:
Front
Number of Gangs:
1 Gang
Overall Length:
5.19 in
Sub Brand:
Pan-Way
Type:
Open, Power Rated, 2-Unit
Widths:
87.6 mm
SoneparProductId:
SKU_US_26630867

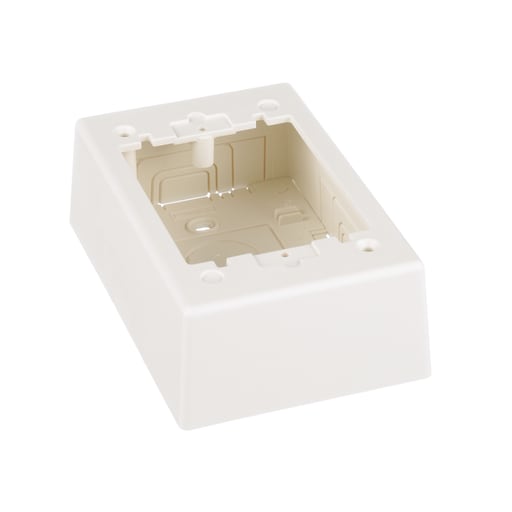

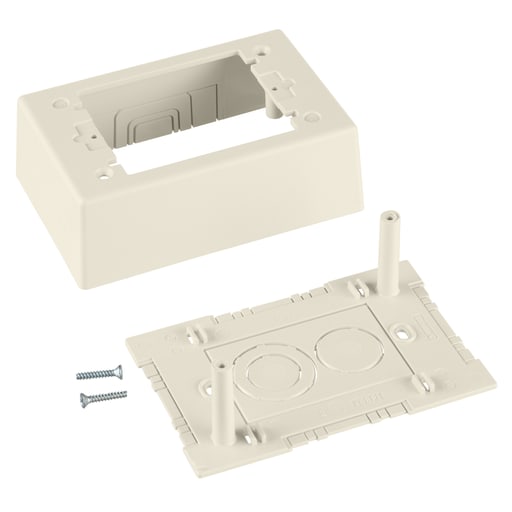

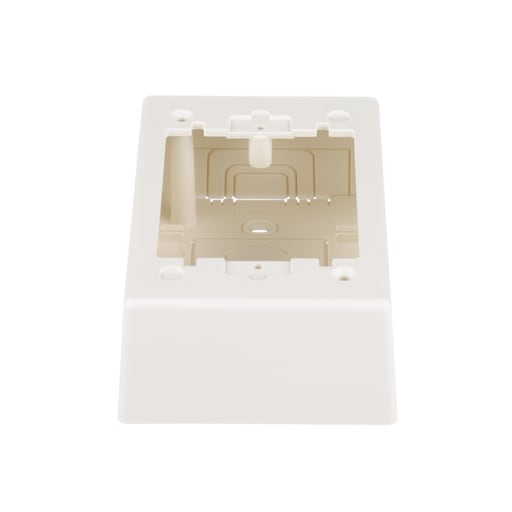

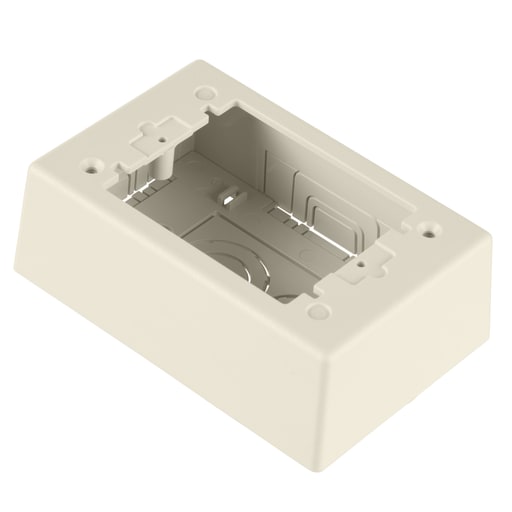

The power rated single gang two-piece screw together outlet box. Box accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. For use withPan-Way® LD profile raceway. 5.19"L x 3.45"W x 1.75"H (131.9mm x 87.7mm x 44.4mm). Breakouts for 1/2", 3/4", or 1" diameter conduit. Off-White Standards and Certifications: Standards Met: RoHS Compliant - Prop 65: No
