Panduit Corp - Panduit LAA250-12-5 Aluminum Compression Lug, 1 Hole, 250 kcmil, 1/2" (12.7mm) Stud
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983910465
Buy American - Y
Catalog Number - LAA250-12-5
Color - Red
Country of Origin - Mexico,USA
Packaging
1 ea
EAN
00074983910465
Part #
125356
Catalog #
LAA250125
Commercial reference
LAA250125
12-Digit UPC:
074983910465
Buy American:
Y
Catalog Number:
LAA250-12-5
Color:
Red
Country of Origin:
Mexico,USA
ERP_productname:
PAND LAA250125 250MCM 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Length:
3.63 Inch
Material:
Aluminum
Number of Holes:
1 Hole
Overall Length:
3.67 in
Product Type:
Power Connectors
Size:
250 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Type LAA
Voltage:
35000 Volt
SoneparProductId:
SKU_US_31831490

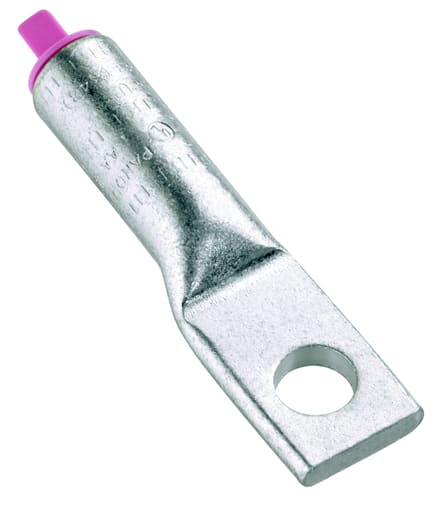

The LAA250-12-5 Aluminum Compression Connector Lug, one-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C.
