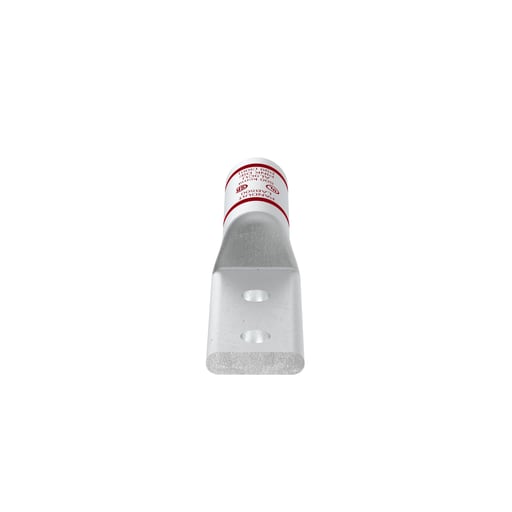

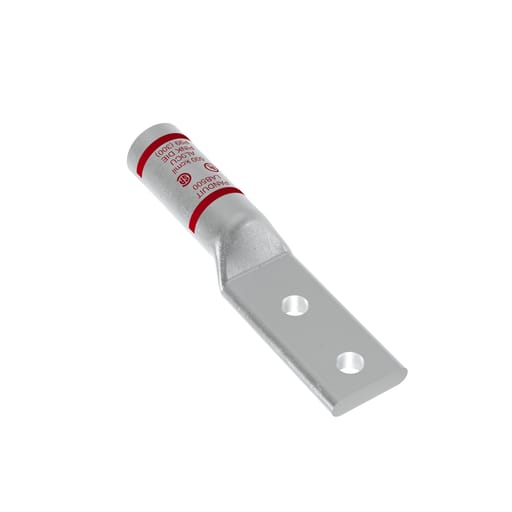

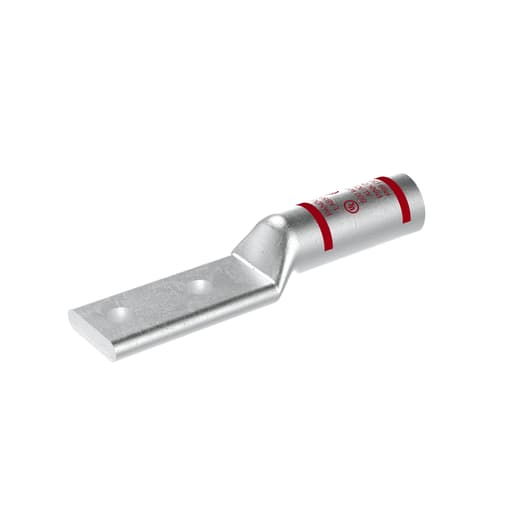

Panduit Corp - Panduit LAB2/0-12-5 Pan-Lug™ Aluminum 1 Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983911301
Buy American - Y
Catalog Number - LAB2/0-12-5
Color - Olive
Country of Origin - India
Packaging
1 ea
EAN
00074983911301
Part #
217717
Catalog #
LAB2/0-12-5
Commercial reference
LAB2/0-12-5
12-Digit UPC:
074983911301
Buy American:
Y
Catalog Number:
LAB2/0-12-5
Color:
Olive
Country of Origin:
India
ERP_productname:
PAND LAB2/0-12-5 ALUMINUM COMPRESSION LUG 2 HOLE 2/0 AW
Family Brand Name:
Panduit Corp.
Material:
Aluminum
Number of Holes:
2 Hole
Overall Length:
5.55 in
Size:
2/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_31503921
The LAB2/0-12-5 Aluminum Compression Connector Lug, two-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound andtin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164 - Prop 65: No
