Panduit Corp - Panduit LAB750-12-1R Pan-Lug™ Aluminum 2 Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983069903
Buy American - Y
Catalog Number - LAB750-12-1R
Color - Red
Country of Origin - India
Packaging
1 ea
EAN
00074983069903
Part #
217048
Catalog #
LAB750-12-1R
Commercial reference
LAB750-12-1R
12-Digit UPC:
074983069903
Buy American:
Y
Catalog Number:
LAB750-12-1R
Color:
Red
Country of Origin:
India
ERP_productname:
PAND LAB750-12-1R R-ALLUG,2HOLE,750KCMIL,1/2STUDPK1
Family Brand Name:
Panduit Corp.
Material:
Aluminum
Number of Holes:
2 Hole
Overall Length:
8.25 in
Size:
700 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Compression Connectors - Lugs
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_30105174

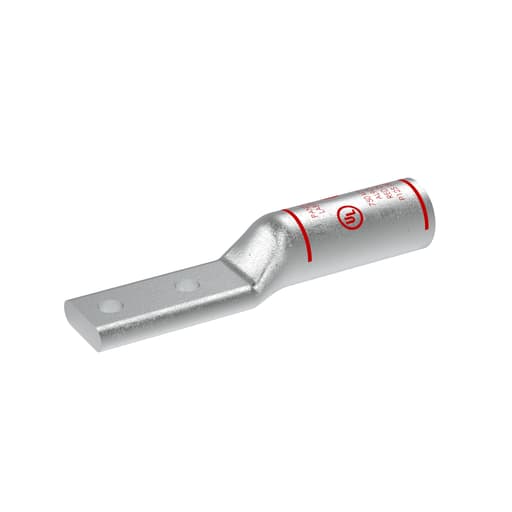

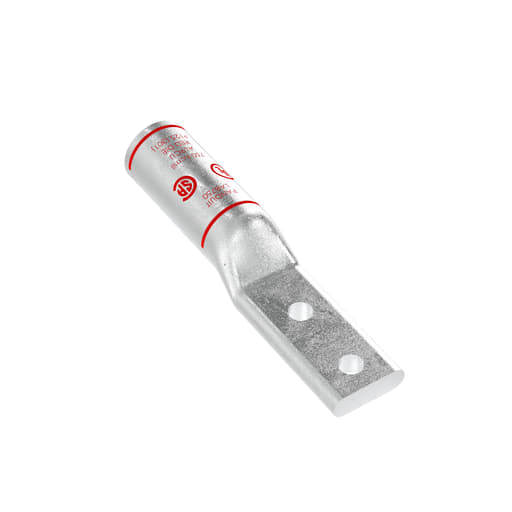

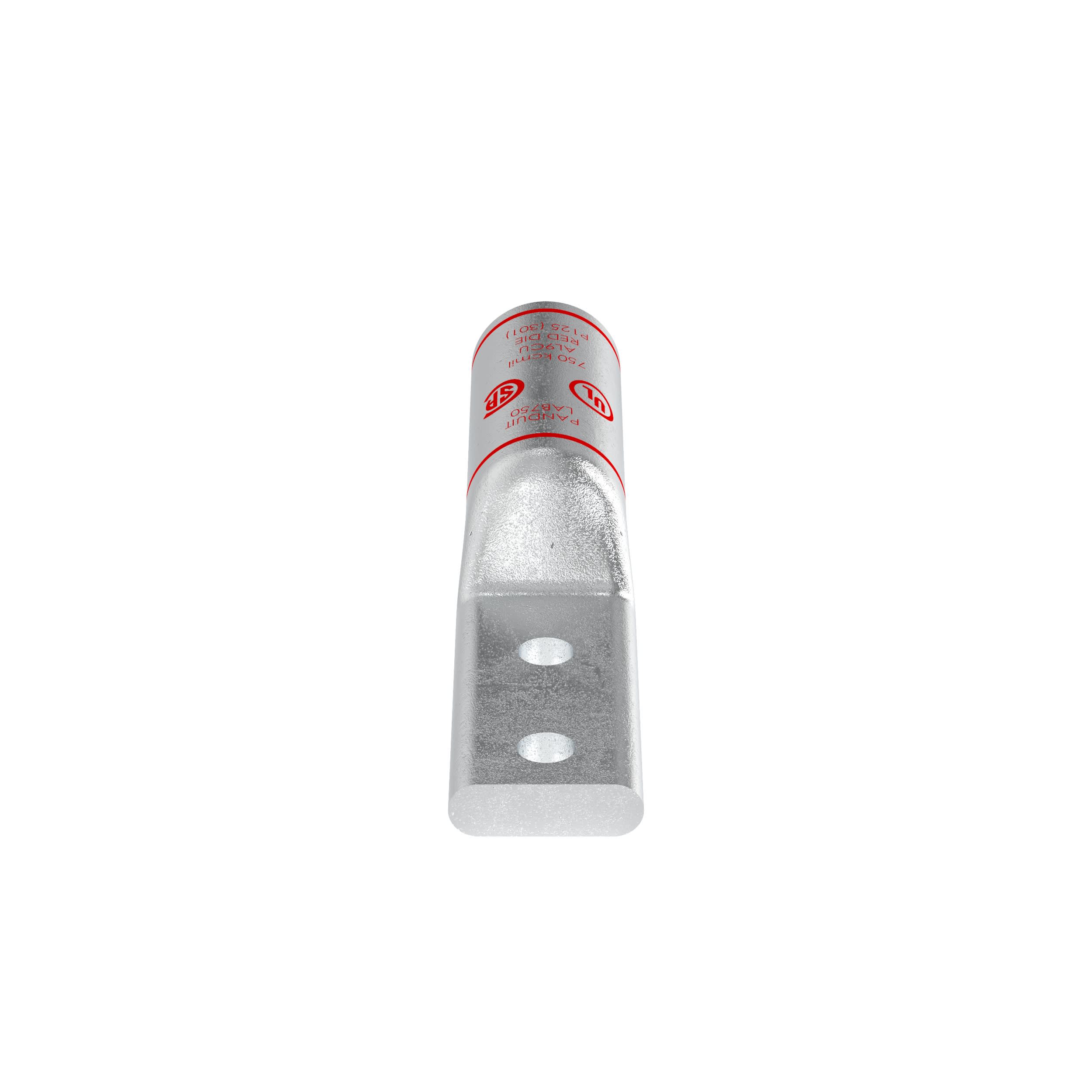

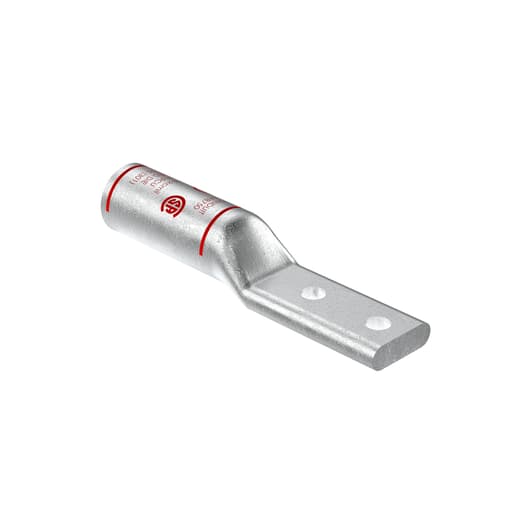

The LAB750-12-1R Aluminum Compression Connector Lug, two-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound andtin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90.C.
