Panduit Corp - Panduit LAM2A1/0-14-6Y 1-Hole 2 Barrel Aluminum Mechanical Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983592180
Buy American - Y
Catalog Number - LAM2A1/0-14-6Y
Color - Metallic
Conductor Size - 14-1/0 AWG
Packaging
1 ea
EAN
00074983592180
Part #
172485
Catalog #
LAM2A1/0-14-6Y
Commercial reference
LAM2A1/0-14-6Y
12-Digit UPC:
074983592180
Buy American:
Y
Catalog Number:
LAM2A1/0-14-6Y
Color:
Metallic
Conductor Size:
14-1/0 AWG
Country of Origin:
India
ERP_productname:
PAND LAM2A1/0-14-6Y 2BRL ALCU LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
0.77 Inch
Material:
Aluminum
Number of Conductors:
2
Overall Length:
1.48 in
Sub Brand:
Pan-Lug™
Type:
Two Barrel, Non-Insulated
Voltage:
600 Volt
Widths:
1.13 in
SoneparProductId:
SKU_US_27172656

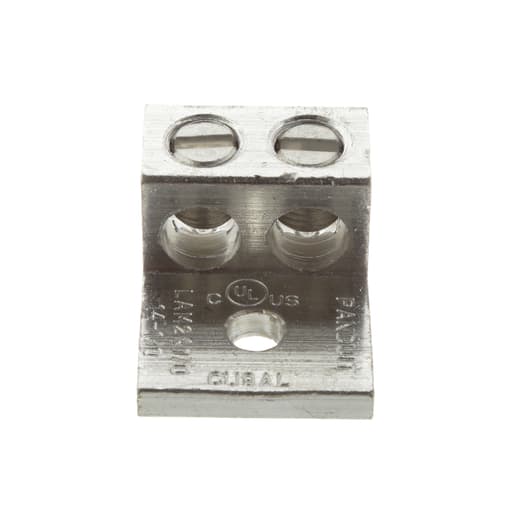

The LAM2A1/0-14-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
