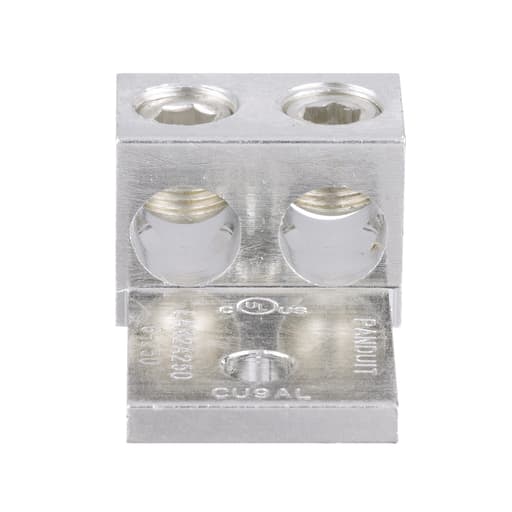

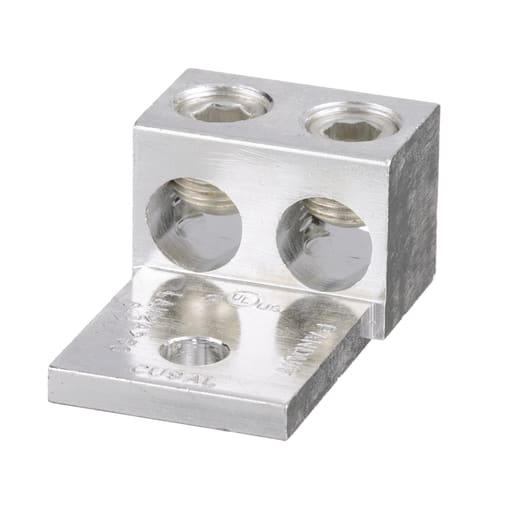

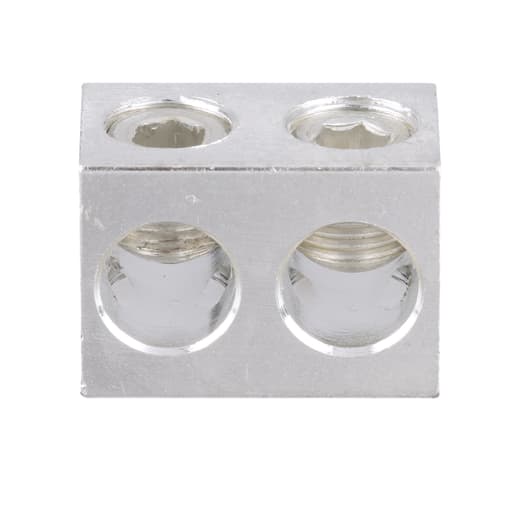

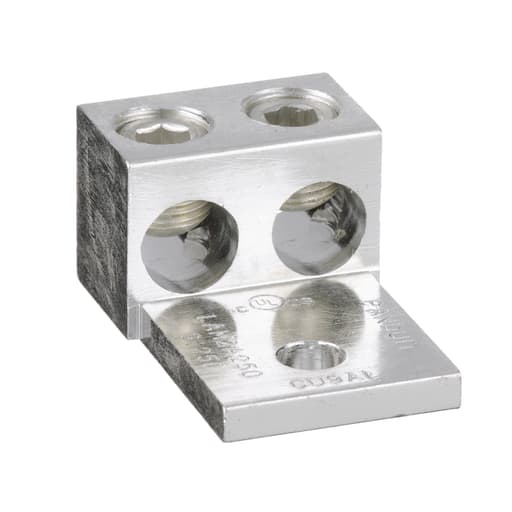

Panduit Corp - Panduit LAM2A250-38-6Y 1-Hole 2 Barrel Aluminum Mechanical Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983592555
Buy American - Y
Catalog Number - LAM2A250-38-6Y
Color - Metallic
Conductor Size - 6 AWG-250 kcmil
Packaging
1 ea
EAN
00074983592555
Part #
214129
Catalog #
LAM2A250-38-6Y
Commercial reference
LAM2A250-38-6Y
12-Digit UPC:
074983592555
Buy American:
Y
Catalog Number:
LAM2A250-38-6Y
Color:
Metallic
Conductor Size:
6 AWG-250 kcmil
Country of Origin:
India
ERP_productname:
PAND LAM2A250-38-6Y ALUMINUM MECHANICAL LUG 1 HOLE 2 BARREL
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Heights:
1.19 Inch
Material:
Aluminum
Number of Conductors:
2
Overall Length:
2.58 in
Sub Brand:
Pan-Lug™
Type:
Two Barrel, Non-Insulated
Voltage:
600 Volt
Widths:
1.64 in
SoneparProductId:
SKU_US_25574468
The LAM2A250-38-6Y Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
