Panduit Corp - Panduit LCA1/0-14-X 1-Hole 1/0 AWG 1/4 Inch Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983901142
Buy American - Y
Catalog Number - LCA1/0-14-X
Color - Fresh Pink Lemonade
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983901142
Part #
201779
Catalog #
LCA1/0-14-X
Commercial reference
LCA1/0-14-X
12-Digit UPC:
074983901142
Buy American:
Y
Catalog Number:
LCA1/0-14-X
Color:
Fresh Pink Lemonade
Country of Origin:
Mexico
ERP_productname:
PAND LCA1/0-14-X 1 HOLE CU STD BARREL LUG -
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.95 in
Size:
1/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26573719

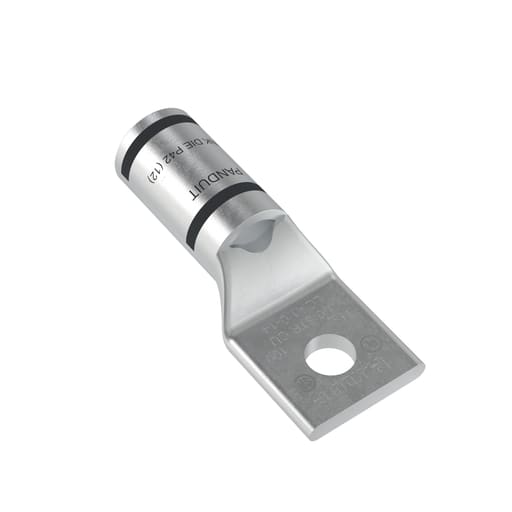

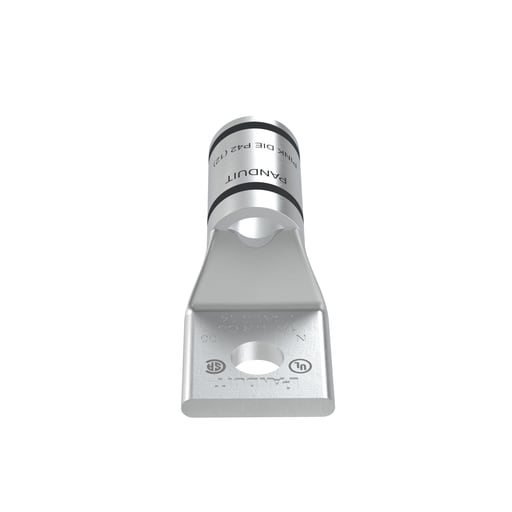

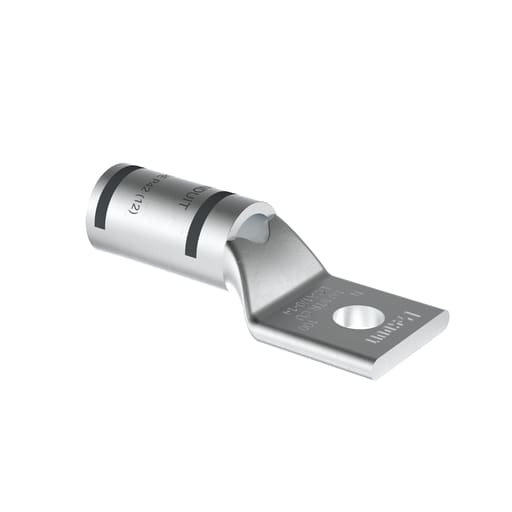

The LCA1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
