Panduit Corp - Panduit LCA1-38-E 1-Hole #1 AWG Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900213
Buy American - Y
Catalog Number - LCA1-38-E
Color - Green
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983900213
Part #
103603
Catalog #
LCA1-38-E
Commercial reference
LCA1-38-E
12-Digit UPC:
074983900213
Buy American:
Y
Catalog Number:
LCA1-38-E
Color:
Green
Country of Origin:
Mexico
ERP_productname:
PAND LCA1-38-E 1AWG 1HOLE LUG 3/8"
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.99 in
Size:
#1 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35000 Volt
SoneparProductId:
SKU_US_25414082

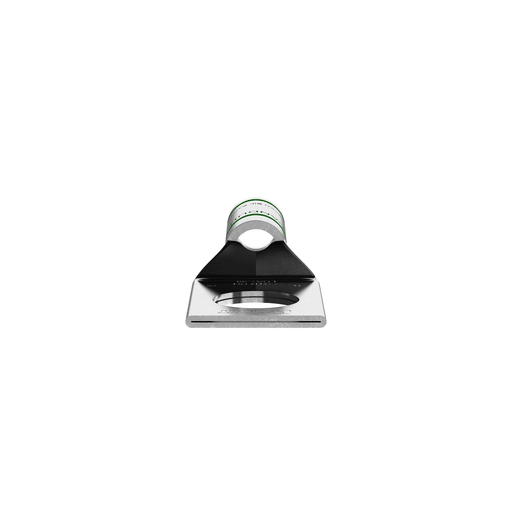

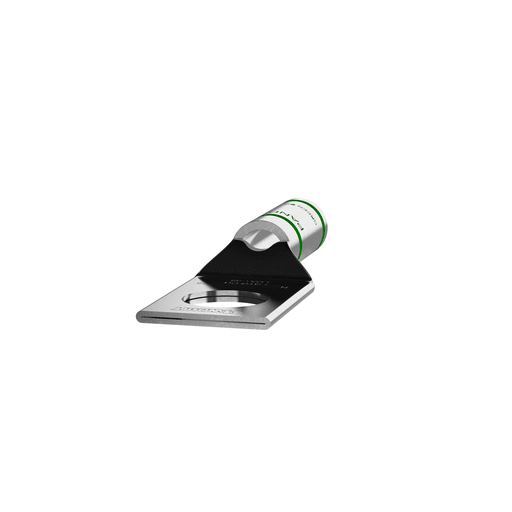

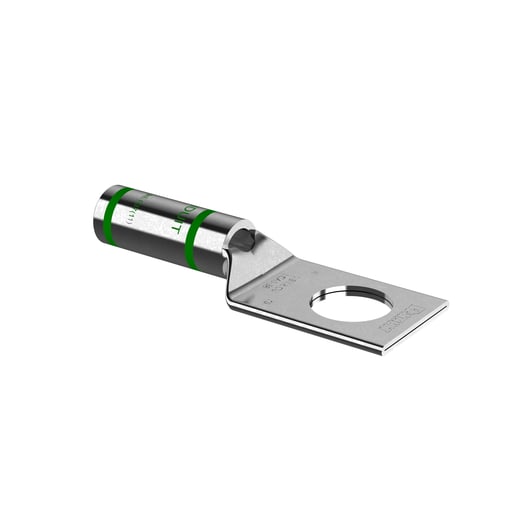

The LCA1-38-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS - Prop 65: No
