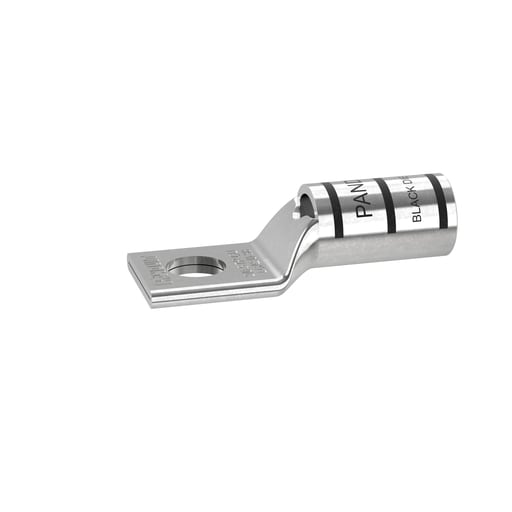

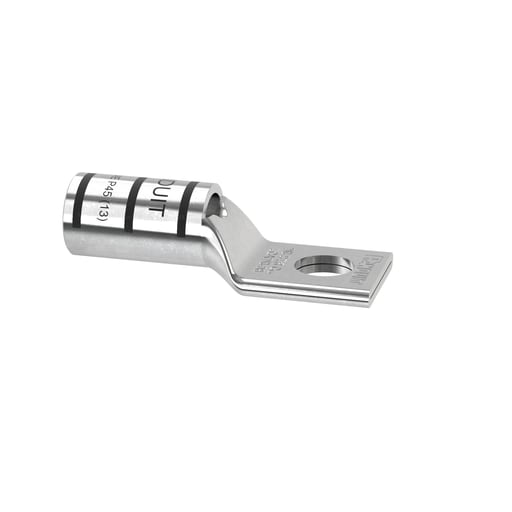

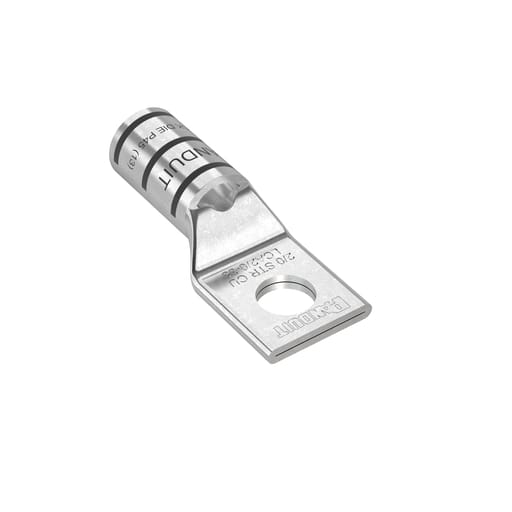

Panduit Corp - Panduit LCA2/0-38-X 1-Hole Copper Compression Lug, Standard Barrel w/ Window, 2/0 AWG, 3/8"bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900305
Buy American - Y
Catalog Number - LCA2/0-38-X
Color - Black
Conductor Size - 2/0 AWG
Packaging
1 ea
EAN
00074983900305
Part #
125820
Catalog #
LCA2/0-38-X
Commercial reference
LCA2/0-38-X
12-Digit UPC:
074983900305
Buy American:
Y
Catalog Number:
LCA2/0-38-X
Color:
Black
Conductor Size:
2/0 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCA2/0-38-X 2/0AWG 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.15 in
Size:
2/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35 kV
SoneparProductId:
SKU_US_25449329
The LCA2/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C Prop 65: No - Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
