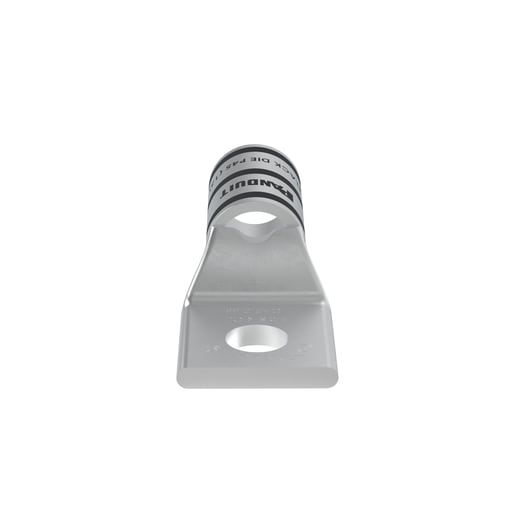

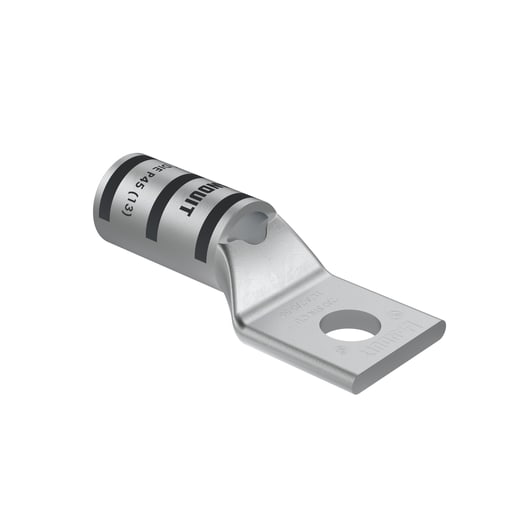

Panduit Corp - Panduit LCA2/0-56-X 1-Hole 2/0 AWG #10 Stud Hole Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983901166
Buy American - Y
Catalog Number - LCA2/0-56-X
Color - Black
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983901166
Part #
125838
Catalog #
LCA2/0-56-X
Commercial reference
LCA2/0-56-X
12-Digit UPC:
074983901166
Buy American:
Y
Catalog Number:
LCA2/0-56-X
Color:
Black
Country of Origin:
Mexico
ERP_productname:
PAND LCA2/0-56-X 2/0AWG 1HOLE LUG
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.08 in
Size:
2/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_26545731
The LCA2/0-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
