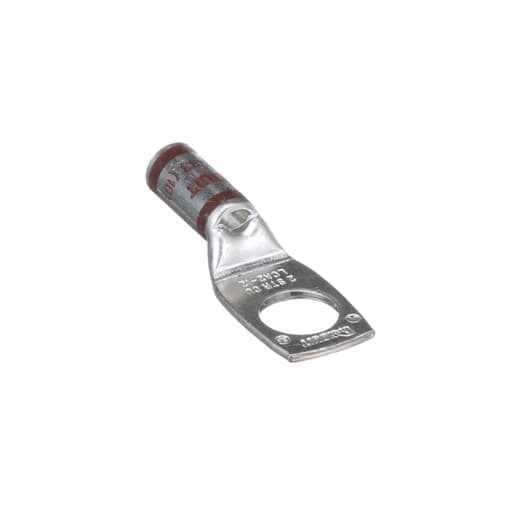

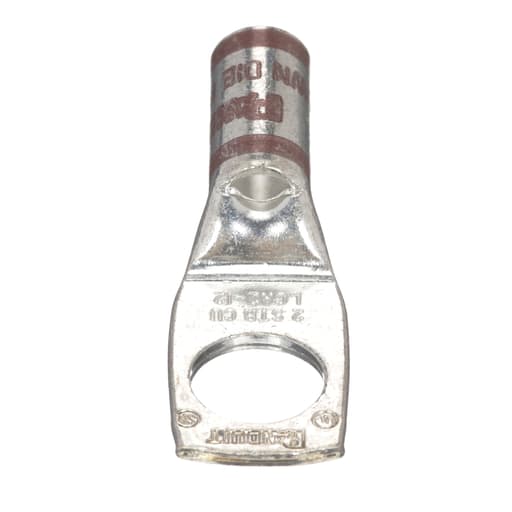

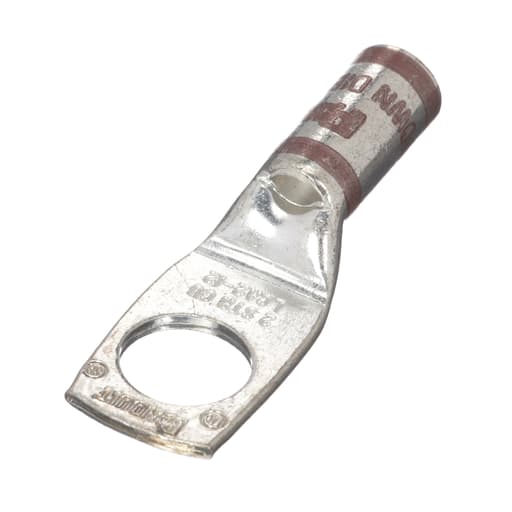

Panduit Corp - Panduit LCA2-12-Q 2 AWG Copper Standard Barrel 1-Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900183
Buy American - Y
Catalog Number - LCA2-12-Q
Color - Brown
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983900183
Part #
103595
Catalog #
LCA2-12-Q
Commercial reference
LCA2-12-Q
12-Digit UPC:
074983900183
Buy American:
Y
Catalog Number:
LCA2-12-Q
Color:
Brown
Country of Origin:
Mexico
ERP_productname:
PAND LCA2-12-Q 2AWG 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.21 in
Size:
#2 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35000 Volt
SoneparProductId:
SKU_US_25600093
The LCA2-12-Q Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
