Panduit Corp - Panduit LCA4/0-12-X 1-Hole 4/0 AWG Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900411
Buy American - Y
Catalog Number - LCA4/0-12-X
Color - Purple
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983900411
Part #
209967
Catalog #
LCA4/0-12-X
Commercial reference
LCA4/0-12-X
12-Digit UPC:
074983900411
Buy American:
Y
Catalog Number:
LCA4/0-12-X
Color:
Purple
Country of Origin:
Mexico
ERP_productname:
PAND LCA4/0-12-X 4/0 CU 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.68 in
Size:
4/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35000 Volt
SoneparProductId:
SKU_US_25522838

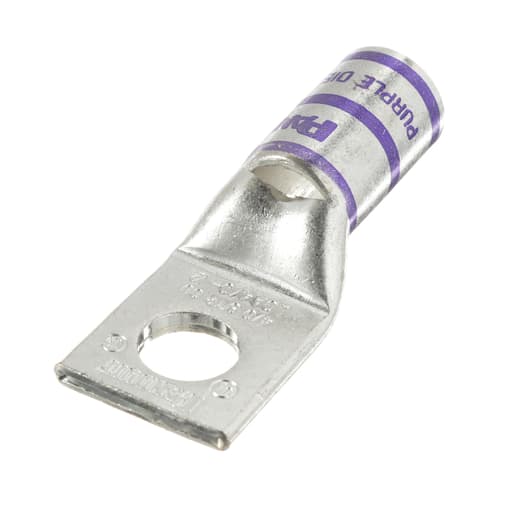

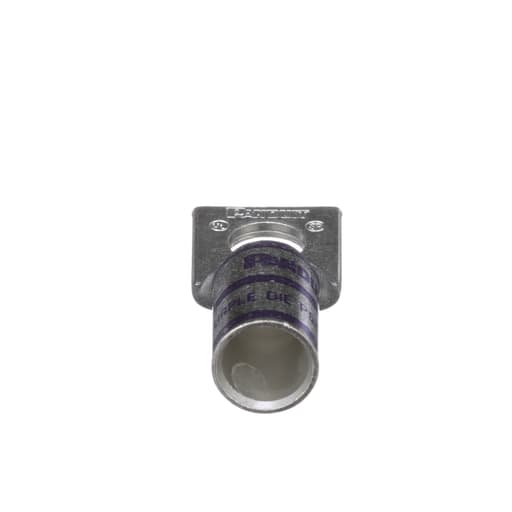

The LCA4/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS - Prop 65: No
