Panduit Corp - Panduit LCA400-12-6 1-Hole 400 MCM Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900596
Buy American - Y
Catalog Number - LCA400-12-6
Color - Olive, Orange, Royal Blue and Yellow
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983900596
Part #
215637
Catalog #
LCA400-12-6
Commercial reference
LCA400-12-6
12-Digit UPC:
074983900596
Buy American:
Y
Catalog Number:
LCA400-12-6
Color:
Olive, Orange, Royal Blue and Yellow
Country of Origin:
Mexico
ERP_productname:
PAND LCA400-12-6 COPPER COMPRESSION LUG 1 HOLE 400 KCMI
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
3.22 in
Size:
400 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25311037

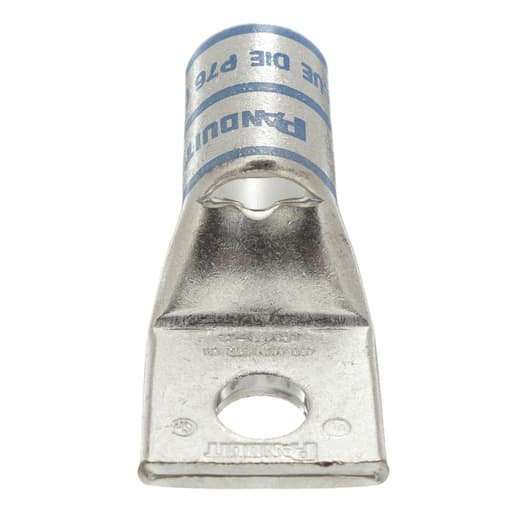

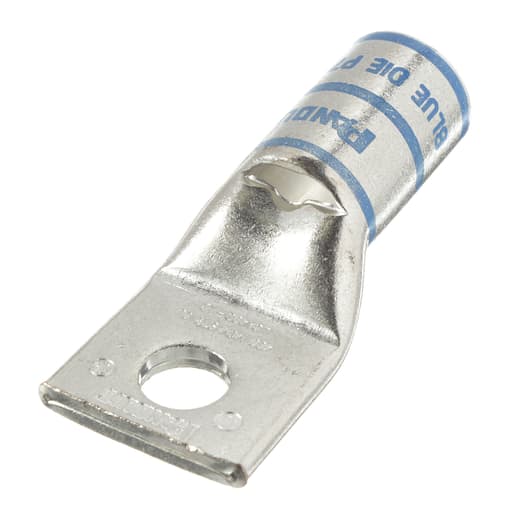

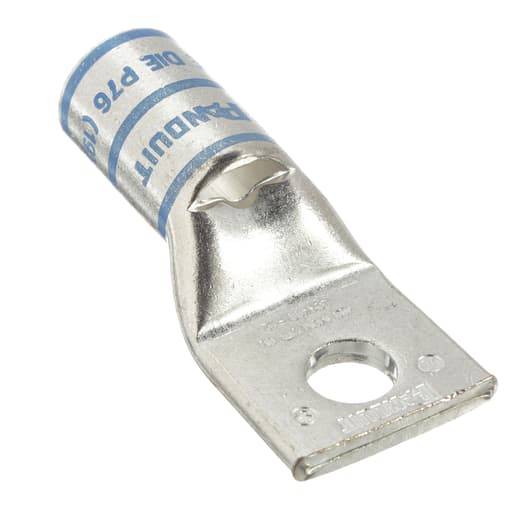

The LCA400-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS - Prop 65: No
