Panduit Corp - Panduit LCA6-10-L 1-Hole Copper Compression Lug, Standard Barrel w/ Window, #6 AWG, #10bolt
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900053
Buy American - Y
Catalog Number - LCA6-10-L
Color - Olive, Orange, Royal Blue and Yellow
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00074983900053
Part #
153531
Catalog #
LCA6-10-L
Commercial reference
LCA6-10-L
12-Digit UPC:
074983900053
Buy American:
Y
Catalog Number:
LCA6-10-L
Color:
Olive, Orange, Royal Blue and Yellow
Conductor Size:
6 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCA6-10-L COPPER COMPRESSION LUG, 1 HOLE, #6 AWG,
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.52 in
Size:
#6 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35 kV
SoneparProductId:
SKU_US_26572951

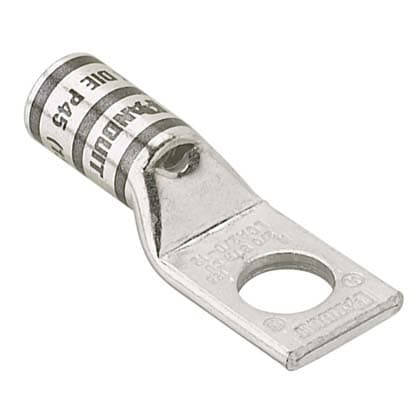

The LCA6-10-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS - Prop 65: No
