Panduit Corp - Panduit LCA8-14-L 1-Hole #8 AWG Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983900015
Buy American - Y
Catalog Number - LCA8-14-L
Color - Amber,Green,Red,White
Conductor Size - 8 AWG
Packaging
1 ea
EAN
00074983900015
Part #
125924
Catalog #
LCA8-14-L
Commercial reference
LCA8-14-L
12-Digit UPC:
074983900015
Buy American:
Y
Catalog Number:
LCA8-14-L
Color:
Amber,Green,Red,White
Conductor Size:
8 AWG
Country of Origin:
Mexico
ERP_productname:
PAND LCA8-14-L 8AWG 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.34 in
Size:
#8 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCA
Voltage:
35 kV
SoneparProductId:
SKU_US_25474428

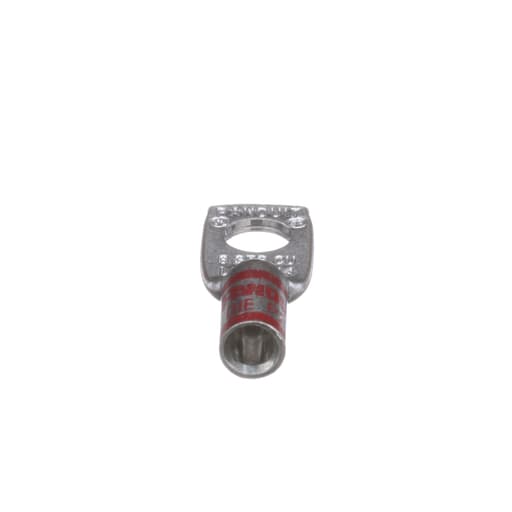

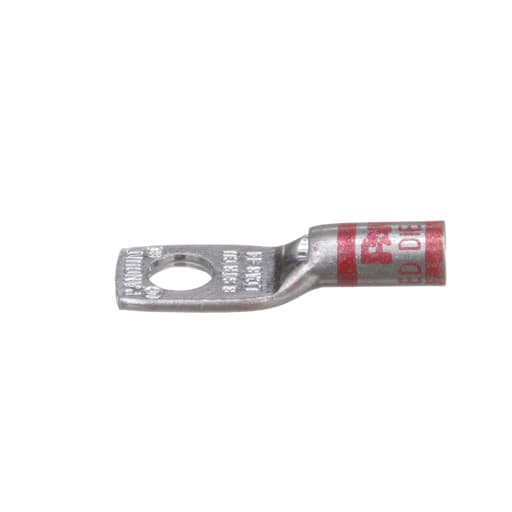

The LCA8-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
