Panduit Corp - Panduit LCAF4/0-12-X 1-Hole 4/0 AWG 1/2 Inch Stud Hole Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983557967
Buy American - Y
Catalog Number - LCAF4/0-12-X
Color - Yellow
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983557967
Part #
147069
Catalog #
LCAF4/0-12-X
Commercial reference
LCAF4/0-12-X
12-Digit UPC:
074983557967
Buy American:
Y
Catalog Number:
LCAF4/0-12-X
Color:
Yellow
Country of Origin:
Mexico
ERP_productname:
PAND LCAF4/0-12-X COPPER COMPRESSION LUG, 1 HOLE, 4/0 AWG,
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.88 in
Size:
4/0 AWG Class K and M and DLO
Sub Brand:
Pan-Lug™
Type:
Type LCAF
Voltage:
35000 Volt
SoneparProductId:
SKU_US_25574695

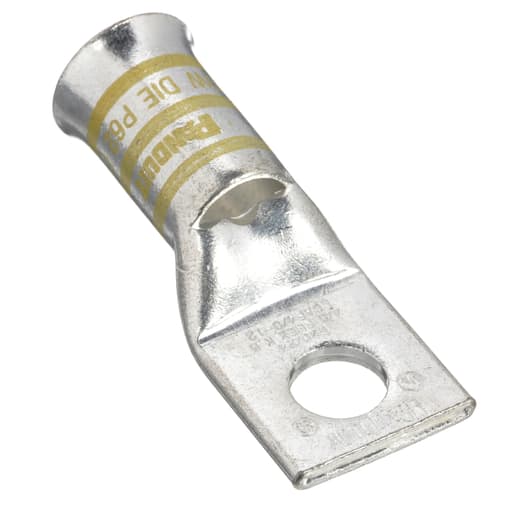

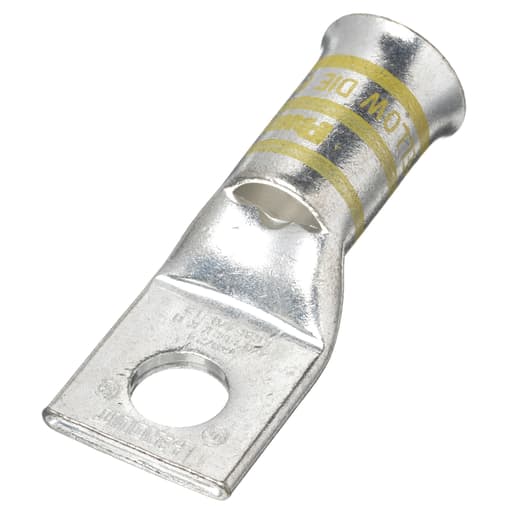

The LCAF4/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS - Prop 65: No
