Panduit Corp - Panduit LCAN3/0-38-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983603381
Buy American - Y
Catalog Number - LCAN3/0-38-X
Color - Black,Orange,White
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983603381
Part #
210432
Catalog #
LCAN3/0-38-X
Commercial reference
LCAN3/0-38-X
12-Digit UPC:
074983603381
Buy American:
Y
Catalog Number:
LCAN3/0-38-X
Color:
Black,Orange,White
Country of Origin:
Mexico
ERP_productname:
PAND LCAN3/0-38-X CULUG,3/0AWG,NARROW,3/8"STUDPKG10
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.36 in
Size:
3/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_73005495

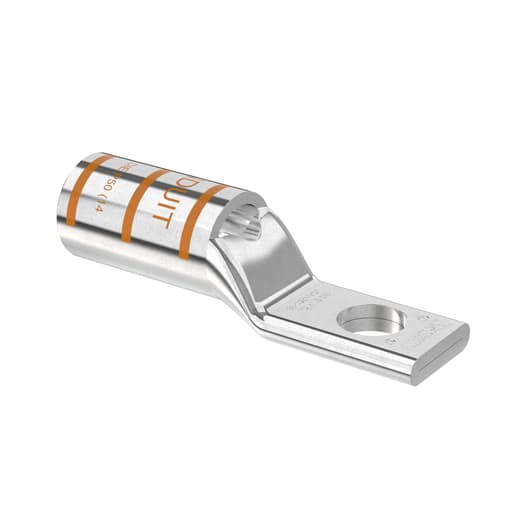

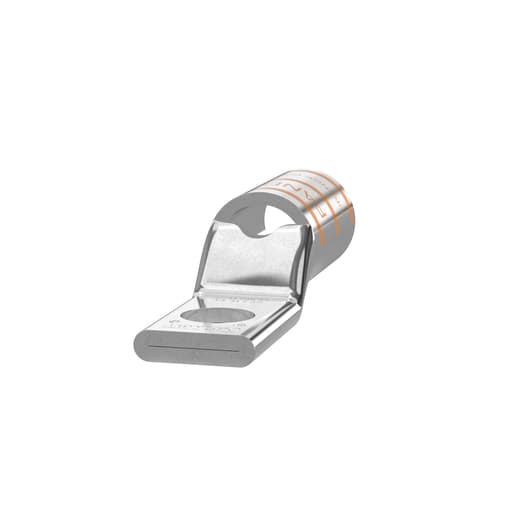

The LCAN3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
