Panduit Corp - Panduit LCAN400-12-6 Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983444823
Buy American - Y
Catalog Number - LCAN400-12-6
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983444823
Part #
338771
Catalog #
LCAN400-12-6
Commercial reference
LCAN400-12-6
12-Digit UPC:
074983444823
Buy American:
Y
Catalog Number:
LCAN400-12-6
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
PAND LCAN400-12-6 PAN-LUG? LCAN400-12-6 COMP. LUG, 400, NA
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
3.24 in
Size:
400 kcmil Code
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_125736184

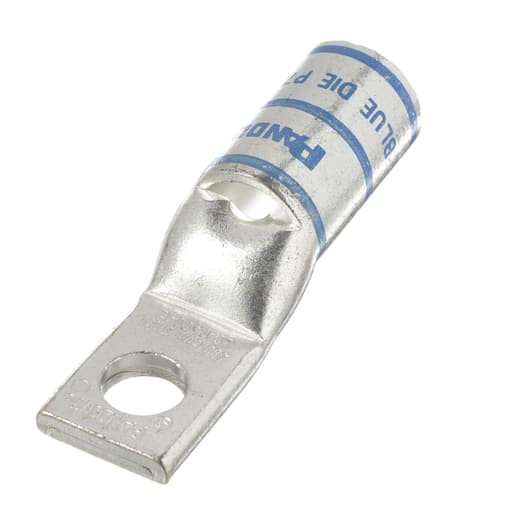

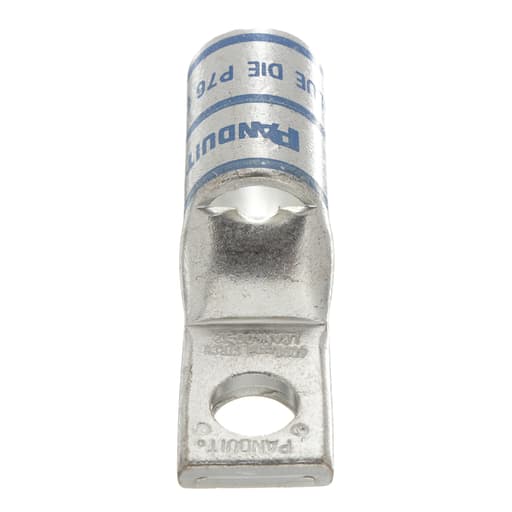

The LCAN400-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, narrow-tongue, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164
