Panduit Corp - Panduit LCAS6-14-L Pan-Lug™ Copper 1 Hole 90. Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983225224
Buy American - Y
Catalog Number - LCAS6-14-L
Color - Olive, Orange, Royal Blue and Yellow
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983225224
Part #
151916
Catalog #
LCAS6-14-L
Commercial reference
LCAS6-14-L
12-Digit UPC:
074983225224
Buy American:
Y
Catalog Number:
LCAS6-14-L
Color:
Olive, Orange, Royal Blue and Yellow
Country of Origin:
Mexico
ERP_productname:
PAND LCAS6-14-L 1 HOLE LUG
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.28 in
Size:
#6 AWG Code
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29115013

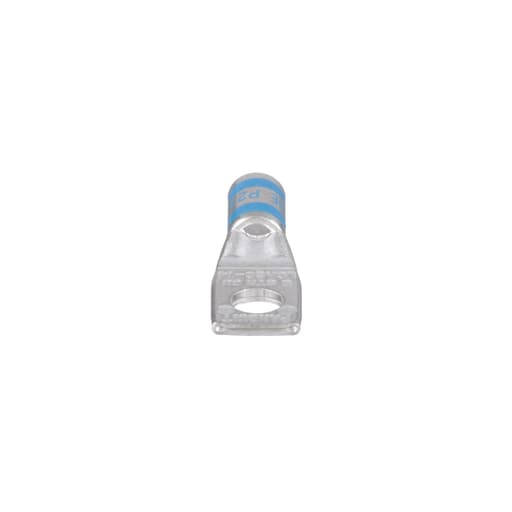

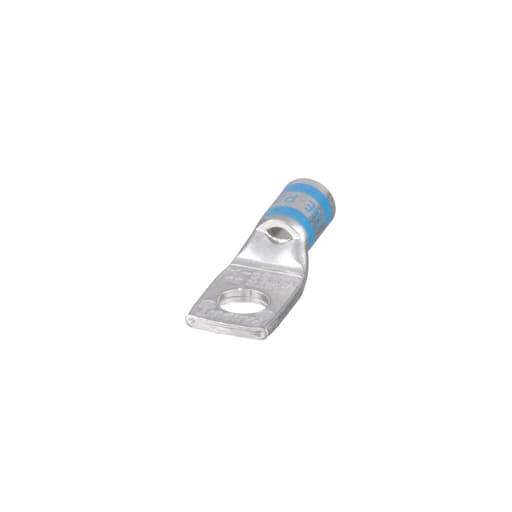

The LCAS6-14-L Tin-Plated Copper Compression Lug, one-hole, short barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, Meets NEBS Level 3, ABS approved
