Panduit Corp - Panduit LCAX1/0-38-X Pan-Lug™ Copper 1 Hole 90. Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435272
Buy American - Y
Catalog Number - LCAX1/0-38-X
Color - Pink
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435272
Part #
223197
Catalog #
LCAX1/0-38-X
Commercial reference
LCAX1/0-38-X
12-Digit UPC:
074983435272
Buy American:
Y
Catalog Number:
LCAX1/0-38-X
Color:
Pink
Country of Origin:
Mexico
ERP_productname:
PAND LCAX1/0-38-X CU CMP LUG 1H 1/0
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.89 in
Size:
1/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25619228

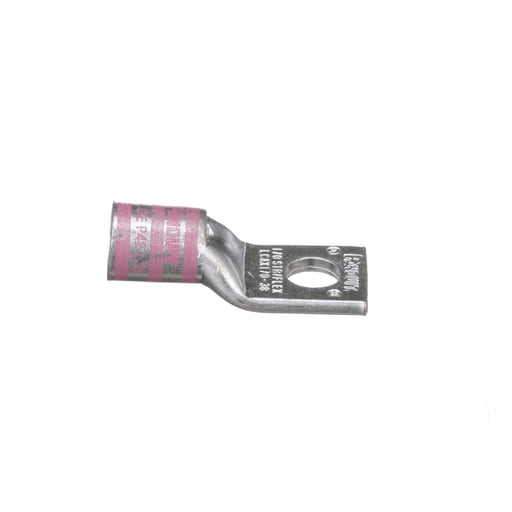

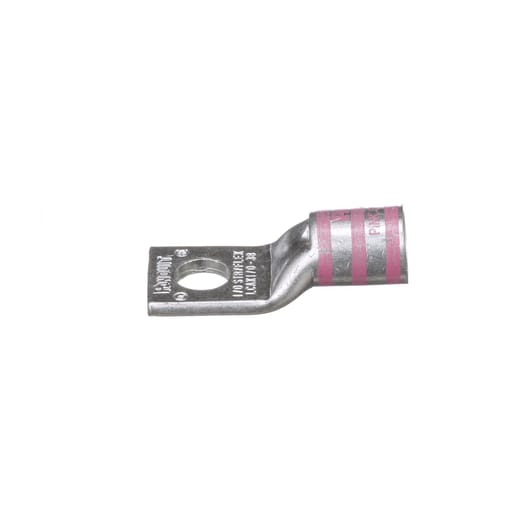

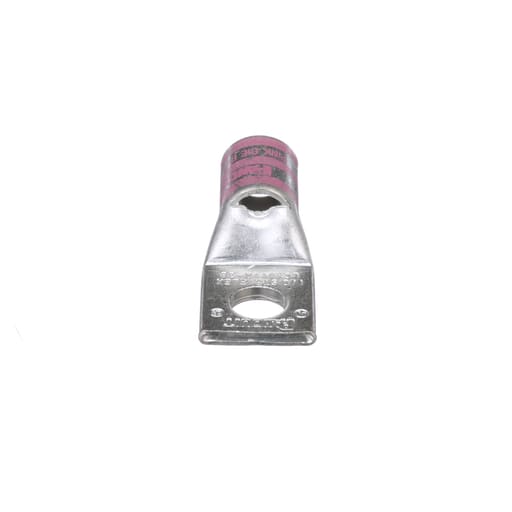

The LCAX1/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
