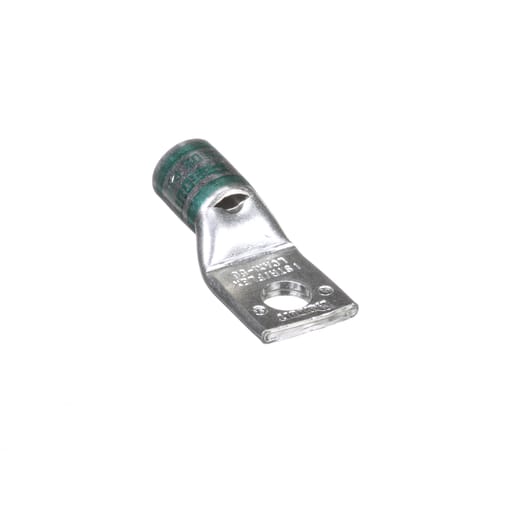

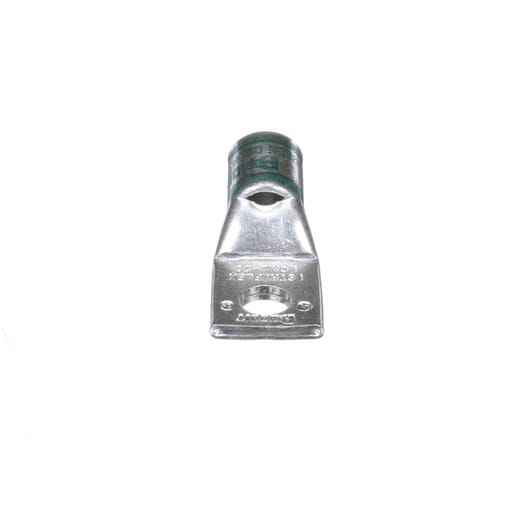

Panduit Corp - Panduit LCAX1-56-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435128
Buy American - Y
Catalog Number - LCAX1-56-X
Color - Green
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435128
Part #
285523
Catalog #
LCAX1-56-X
Commercial reference
LCAX1-56-X
12-Digit UPC:
074983435128
Buy American:
Y
Catalog Number:
LCAX1-56-X
Color:
Green
Country of Origin:
Mexico
ERP_productname:
PAND LCAX1-56-X PAN-LUG? LCAX1-56-X COMP. LUG, 1, TIN PL
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.72 in
Size:
#1 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29994116
The LCAX1-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
