Panduit Corp - Panduit LCAX2/0-38-X 2/0 AWG Copper Standard Barrel 1-Hole Compression Lug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983435395

  • Buy American - Y

  • Catalog Number - LCAX2/0-38-X

  • Color - Black

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00074983435395

Part #

223627

Catalog #

LCAX2/0-38-X

Commercial reference

LCAX2/0-38-X

12-Digit UPC:

074983435395

Buy American:

Y

Catalog Number:

LCAX2/0-38-X

Color:

Black

Country of Origin:

Mexico

ERP_productname:

PAND LCAX2/0-38-X CU CMP LUG 1H 2/0

Family Brand Name:

Panduit Corp.

Finish:

Tin Plated

Material:

Copper

Number of Holes:

1 Hole

Overall Length:

2.03 in

Size:

2/0 AWG Class B, C, G, H, I, K, M and DLO

Sub Brand:

Pan-Lug™

Type:

Preterminated Copper Trunk, Category 6

Voltage:

35,000 Volt

SoneparProductId:

SKU_US_25625170

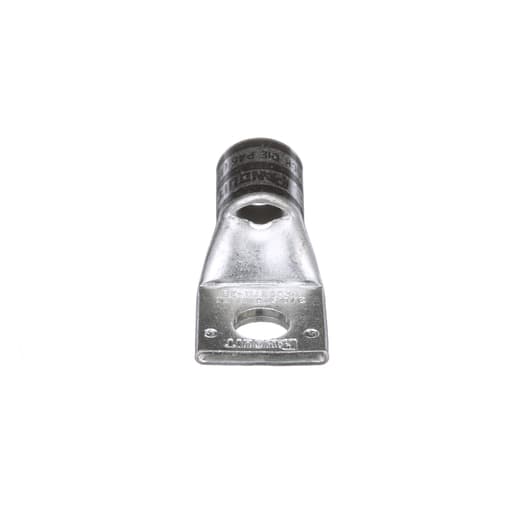

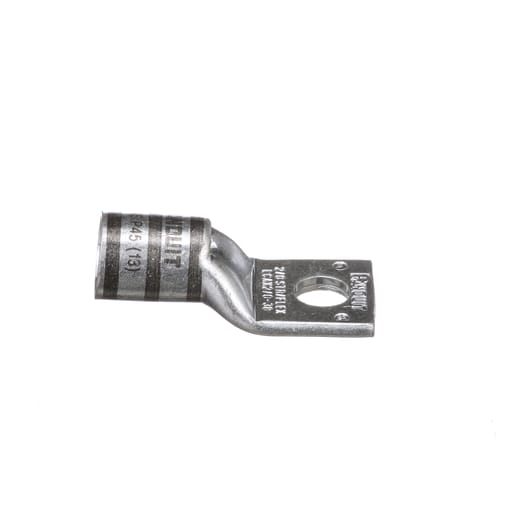

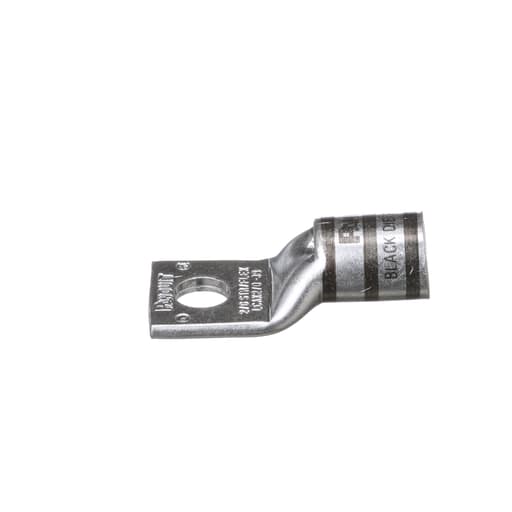

The LCAX2/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved - Prop 65: No
