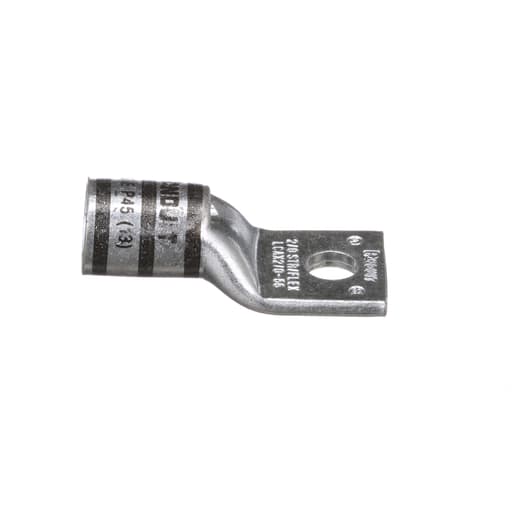

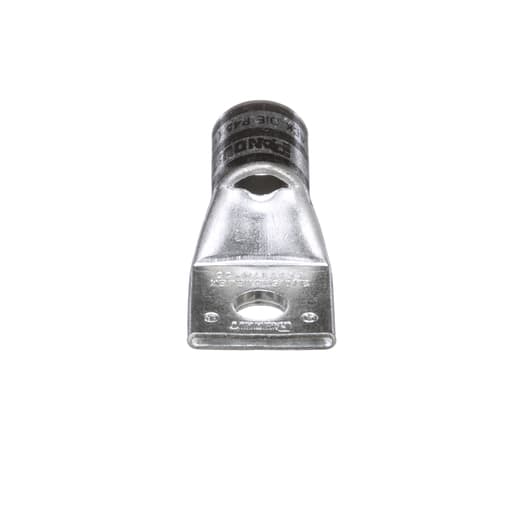

Panduit Corp - Panduit LCAX2/0-56-X 1-Hole 2/0 AWG Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435364
Buy American - Y
Catalog Number - LCAX2/0-56-X
Color - Black
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435364
Part #
223538
Catalog #
LCAX2/0-56-X
Commercial reference
LCAX2/0-56-X
12-Digit UPC:
074983435364
Buy American:
Y
Catalog Number:
LCAX2/0-56-X
Color:
Black
Country of Origin:
Mexico
ERP_productname:
PAND LCAX2/0-56-X COPPER COMPRESSION LUG 1 HOLE 2/0 AWG
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.97 in
Size:
2/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25601072
The LCAX2/0-56-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
