Panduit Corp - Panduit LCAX2-14-E Pan-Lug™ Copper 1 Hole 90. Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983442645
Buy American - Y
Catalog Number - LCAX2-14-E
Color - Brown
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983442645
Part #
138072
Catalog #
LCAX2-14-E
Commercial reference
LCAX2-14-E
12-Digit UPC:
074983442645
Buy American:
Y
Catalog Number:
LCAX2-14-E
Color:
Brown
Country of Origin:
Mexico
ERP_productname:
PAND LCAX2-14-E COPPER COMPRESSION LUG, 1 HOLE, #2 AWG F
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1-1/2 in
Size:
#2 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_29867735

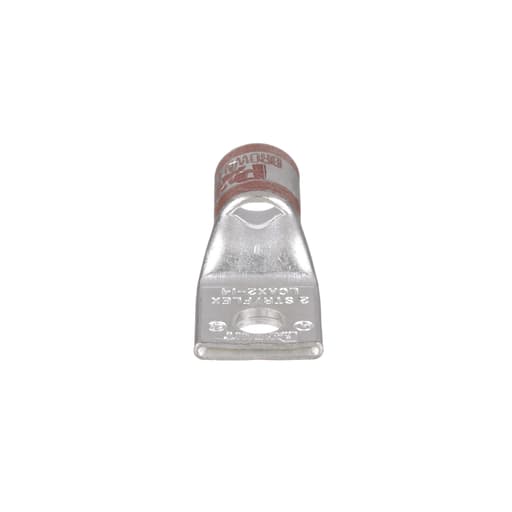

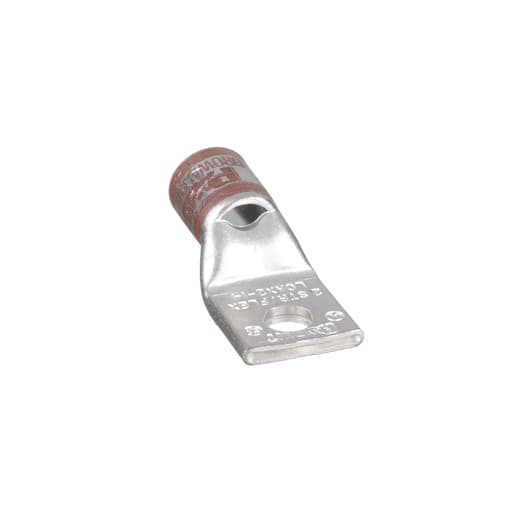

The LCAX2-14-E Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
