Panduit Corp - Panduit LCAX250-12-X 250 MCM Copper Standard Barrel 1-Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435739
Buy American - Y
Catalog Number - LCAX250-12-X
Color - Black on Yellow
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435739
Part #
122833
Catalog #
LCAX250-12-X
Commercial reference
LCAX250-12-X
12-Digit UPC:
074983435739
Buy American:
Y
Catalog Number:
LCAX250-12-X
Color:
Black on Yellow
Country of Origin:
Mexico
ERP_productname:
PAND LCAX250-12-X COPPER COMPRESSION LUG, 1 HOLE, 250 KCMI
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.68 in
Size:
250 kcmil Class G, H, I, K, M and 262.6 kcmil DLO
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25628271

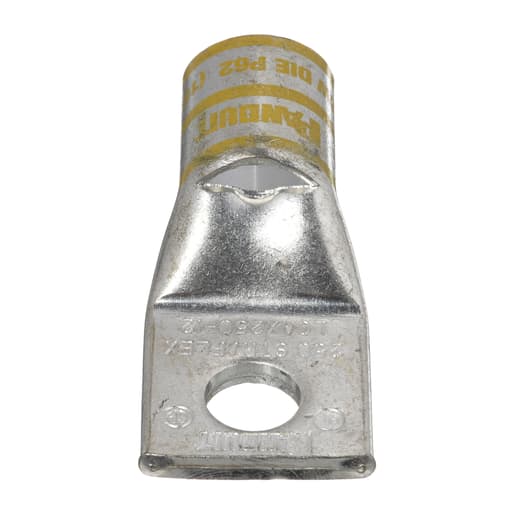

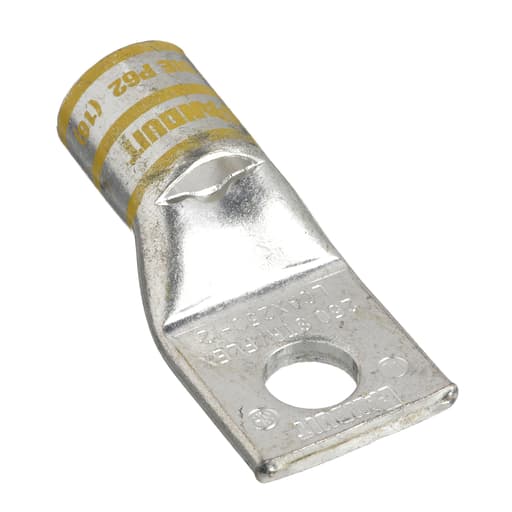

The LCAX250-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
