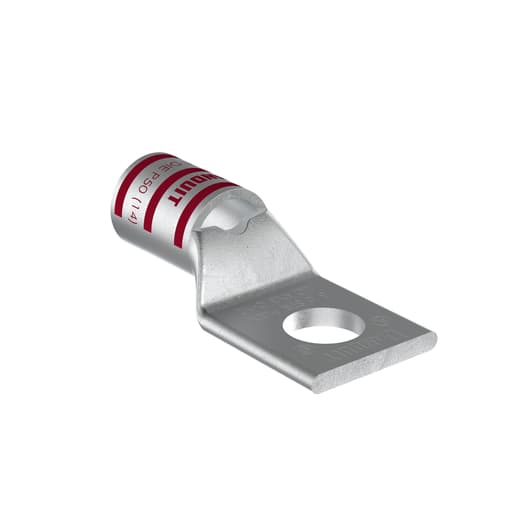

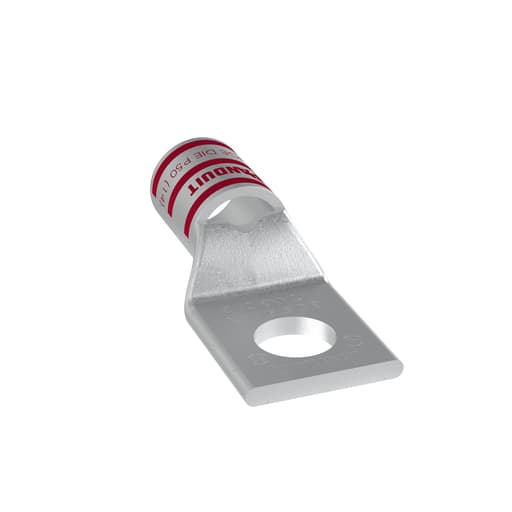

Panduit Corp - Panduit LCAX3/0-12-X Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435548
Buy American - Y
Catalog Number - LCAX3/0-12-X
Color - Orange
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435548
Part #
191707
Catalog #
LCAX3/0-12-X
Commercial reference
LCAX3/0-12-X
12-Digit UPC:
074983435548
Buy American:
Y
Catalog Number:
LCAX3/0-12-X
Color:
Orange
Country of Origin:
Mexico
ERP_productname:
PAND LCAX3/0-12-X COPPER COMPRESSION LUG, 1 HOLE, 3/0 AWG
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.4 in
Size:
3/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25771447
The LCAX3/0-12-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved - Prop 65: No
