Panduit Corp - Panduit LCAX350-38-6 Pan-Lug™ Copper 1 Hole Straight Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435883
Buy American - Y
Catalog Number - LCAX350-38-6
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435883
Part #
253741
Catalog #
LCAX350-38-6
Commercial reference
LCAX350-38-6
12-Digit UPC:
074983435883
Buy American:
Y
Catalog Number:
LCAX350-38-6
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
PAND LCAX350-38-6 PAN-LUG? LCAX350-38-6 COMP. LUG, 350, TI
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.93 in
Size:
350 kcmil Class G, H, I, K, M and 373.7 kcmil DLO
Sub Brand:
Pan-Lug™
Type:
Compression Lug
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25628230

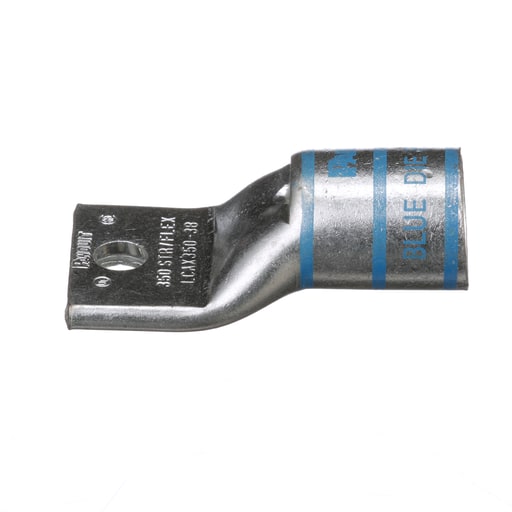

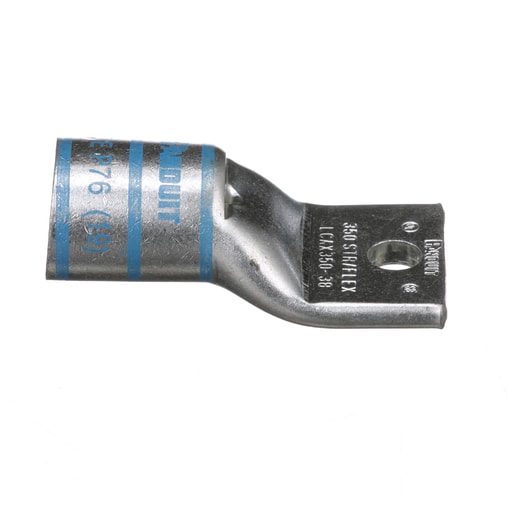

The LCAX350-38-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved - Prop 65: No
