Panduit Corp - Panduit LCAX4/0-38-X 4/0 AWG Copper Standard Barrel 1-Hole Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983435616
Buy American - Y
Catalog Number - LCAX4/0-38-X
Color - White
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983435616
Part #
171033
Catalog #
LCAX4/0-38-X
Commercial reference
LCAX4/0-38-X
12-Digit UPC:
074983435616
Buy American:
Y
Catalog Number:
LCAX4/0-38-X
Color:
White
Country of Origin:
Mexico
ERP_productname:
PAND LCAX4/0-38-X 1-HL STD FLX LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
2.53 in
Size:
4/0 AWG Class B, C, G, H, I, K, M and DLO
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25742243

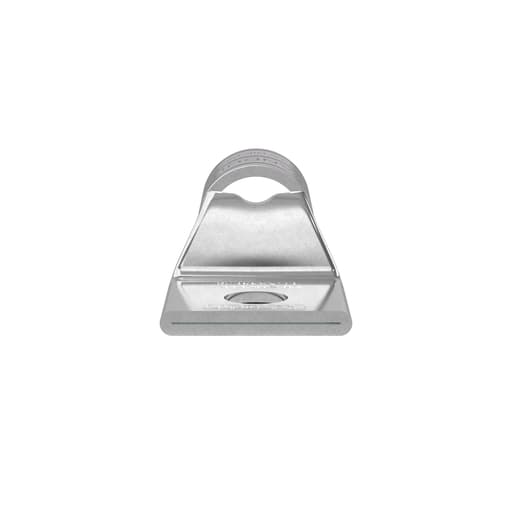

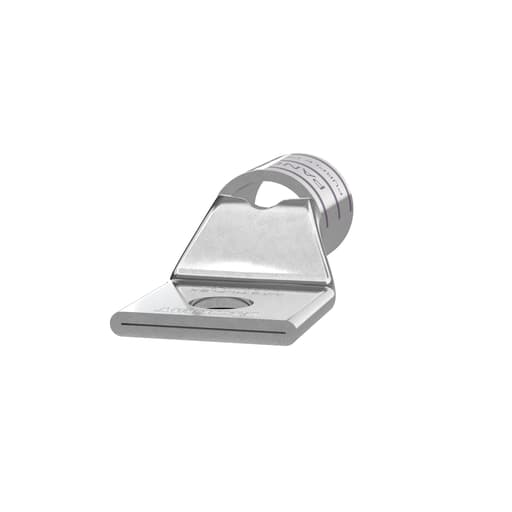

The LCAX4/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
