Panduit Corp - Panduit LCAX4-14-L Pan-Lug™ Copper 1 Hole 45. Tongue Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983434015
Buy American - Y
Catalog Number - LCAX4-14-L
Color - Light Gray
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983434015
Part #
154160
Catalog #
LCAX4-14-L
Commercial reference
LCAX4-14-L
12-Digit UPC:
074983434015
Buy American:
Y
Catalog Number:
LCAX4-14-L
Color:
Light Gray
Country of Origin:
Mexico
ERP_productname:
PAND LCAX4-14-L COPPER COMPRESSION LUG, 1 HOLE, #4 AWG F
Family Brand Name:
Panduit Corp.
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
1.35 in
Size:
#4 AWG Class B, C, G, H, I, K, M and #5, #4, #3 AWG DLO
Sub Brand:
Pan-Lug™
Type:
Preterminated Copper Trunk, Category 6
Voltage:
35,000 Volt
SoneparProductId:
SKU_US_25702696

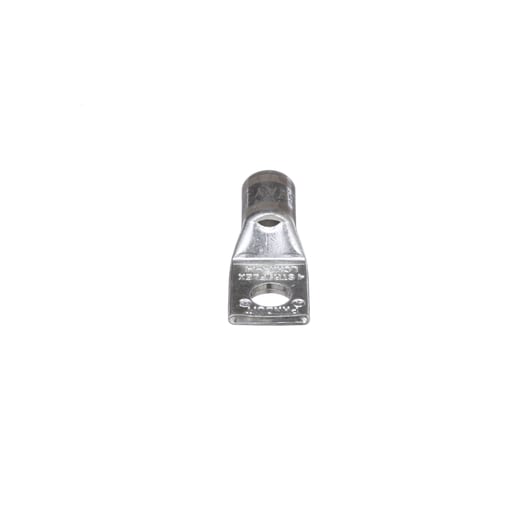

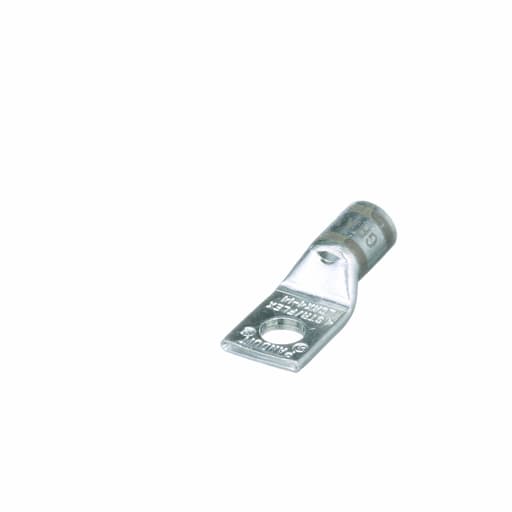

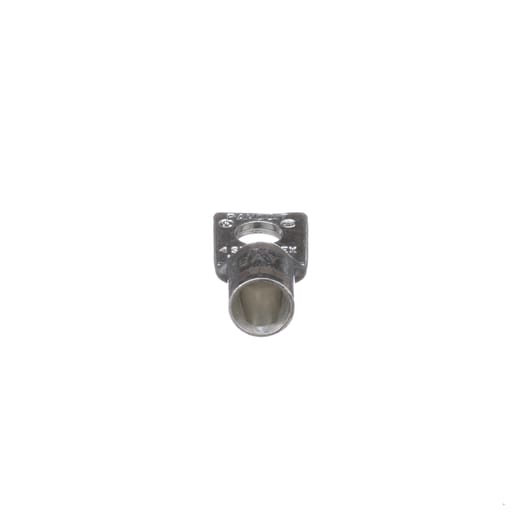

The LCAX4-14-L Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved - Prop 65: No
