Panduit Corp - Panduit LCB4/0-12-X 1-Hole 4/0 AWG 1/2 Inch Stud Hole Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983901401
Buy American - Y
Catalog Number - LCB4/0-12-X
Color - Purple
Country of Origin - Mexico
Packaging
1 ea
EAN
00074983901401
Part #
126119
Catalog #
LCB4/012X
Commercial reference
LCB4/012X
12-Digit UPC:
074983901401
Buy American:
Y
Catalog Number:
LCB4/0-12-X
Color:
Purple
Country of Origin:
Mexico
ERP_productname:
PAND LCB4/012X 4/0AWG 1HOLE LUG
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
1 Hole
Overall Length:
3.22 in
Size:
4/0 AWG Code
Sub Brand:
Pan-Lug™
Type:
Type LCB
Voltage:
35000 Volt
SoneparProductId:
SKU_US_26573665

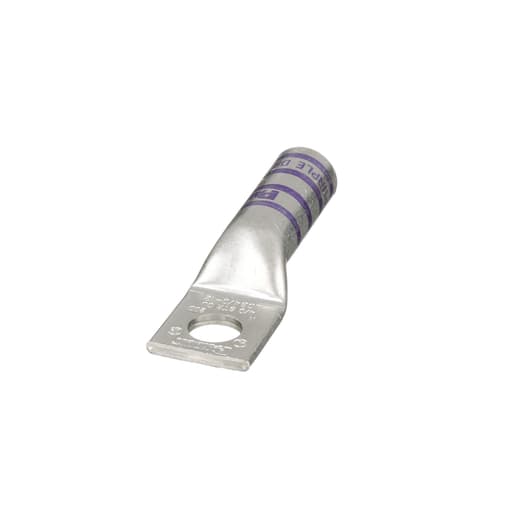

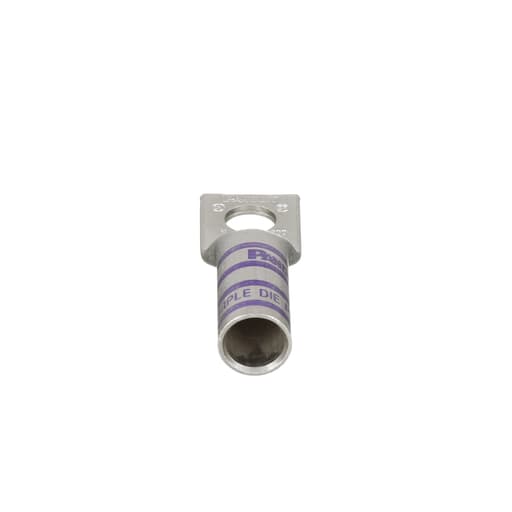

The LCB4/0-12-X Tin-Plated Copper Compression Connector Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified. Standards and Certifications: Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3 - Prop 65: No
