Panduit Corp - Panduit LCC10-14AW-L 2-Hole #10 AWG 1/4 Inch .63 Inch Copper Compression Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983973835
Buy American - Y
Catalog Number - LCC10-14AW-L
Country of Origin - Mexico
ERP_productname - PAND LCC10-14AW-L COPPER COMP LUG 2HOLE #10AWG 1/4
Packaging
1 ea
EAN
00074983973835
Part #
108848
Catalog #
LCC10-14AW-L
Commercial reference
LCC10-14AW-L
12-Digit UPC:
074983973835
Buy American:
Y
Catalog Number:
LCC10-14AW-L
Country of Origin:
Mexico
ERP_productname:
PAND LCC10-14AW-L COPPER COMP LUG 2HOLE #10AWG 1/4
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Number of Holes:
2 Hole
Overall Length:
1.93 in
Size:
#14 . #10 AWG Code STR #12 . #10 AWG Code SOL
Sub Brand:
Pan-Lug™
Type:
Type LCC-W
Voltage:
35000 Volt
SoneparProductId:
SKU_US_27171971

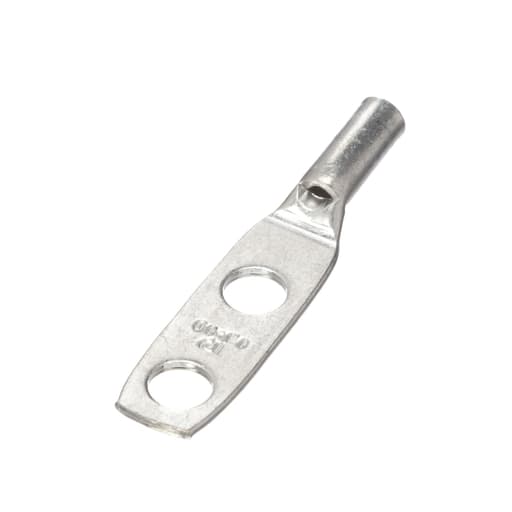

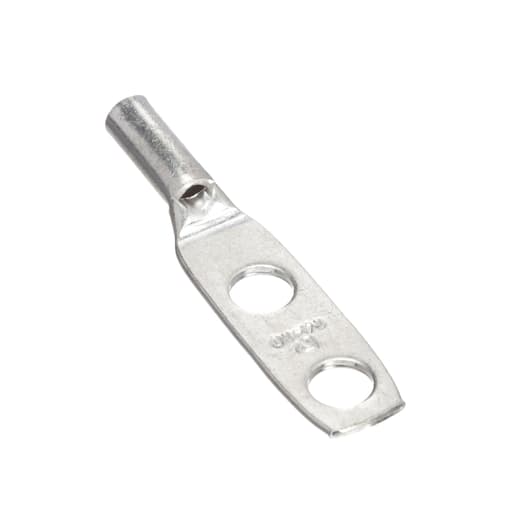

The LCC10-14AW-L Tin-Plated Copper Compression Connector Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified. Prop 65: No - Standards and Certifications: Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
